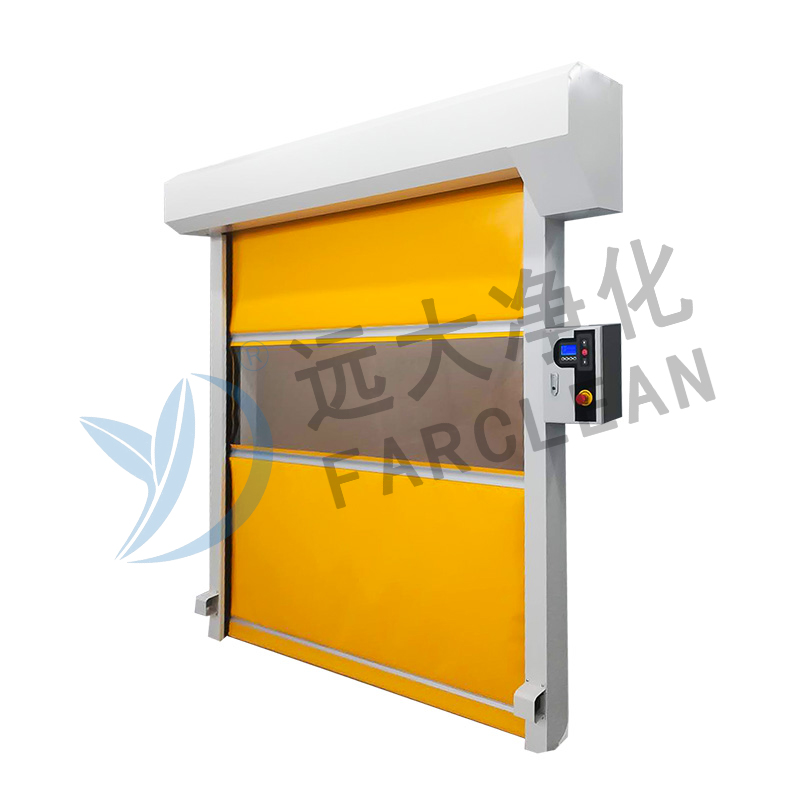

PVC High Speed Rolling Shutter Door

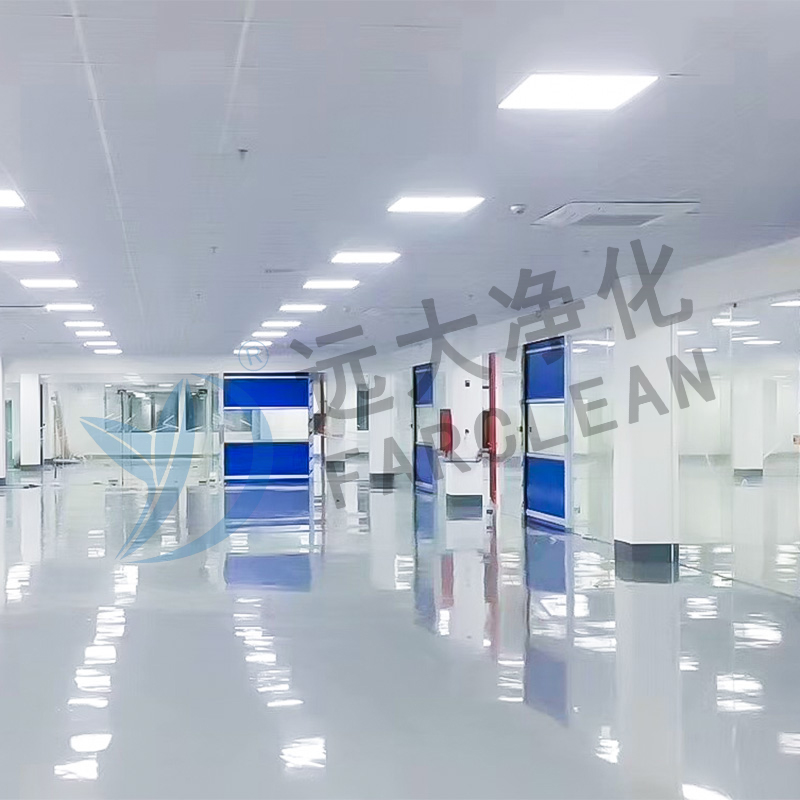

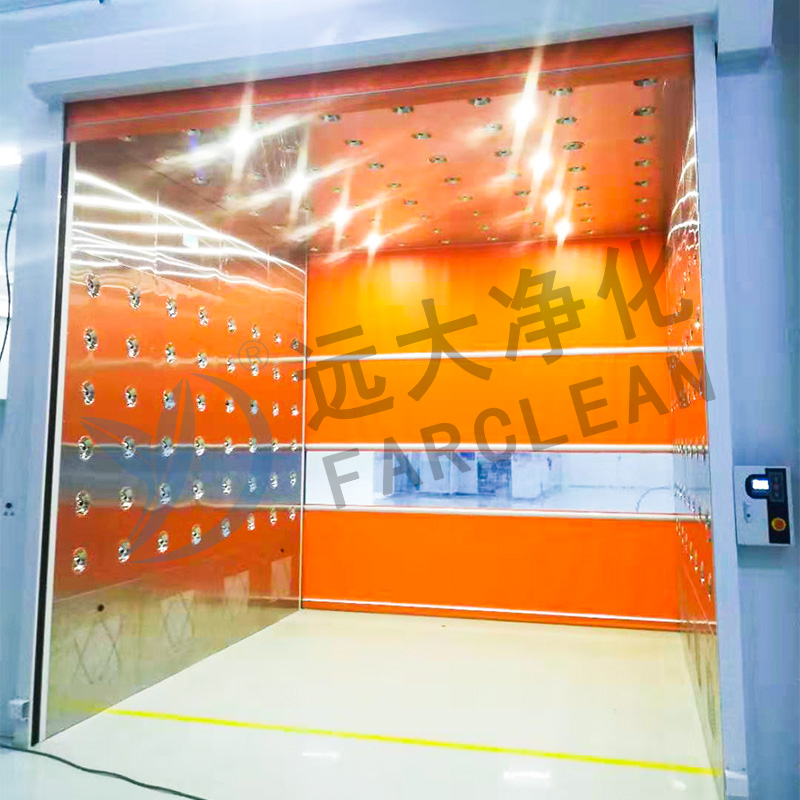

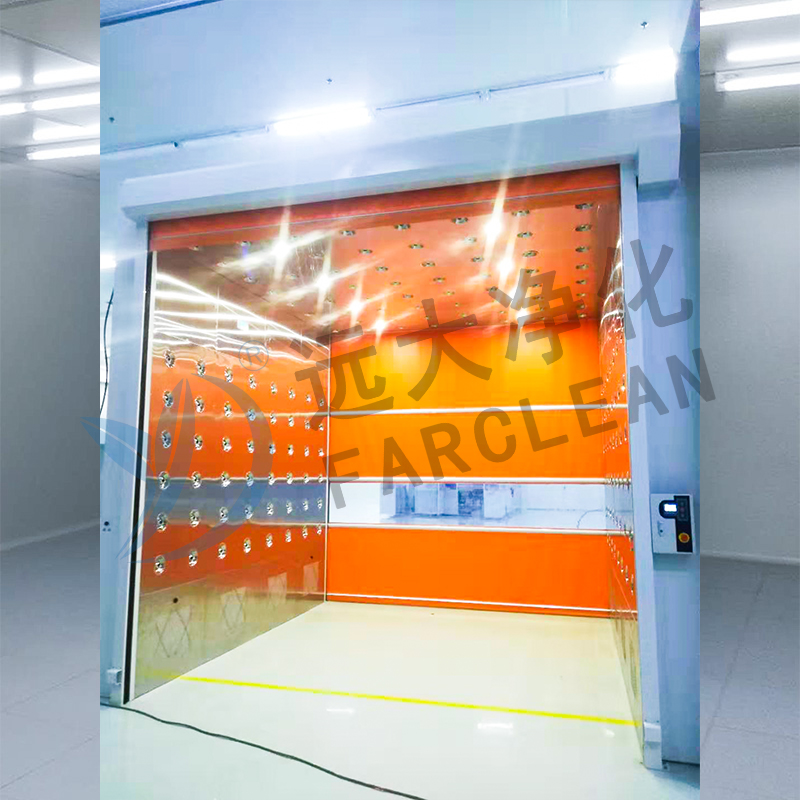

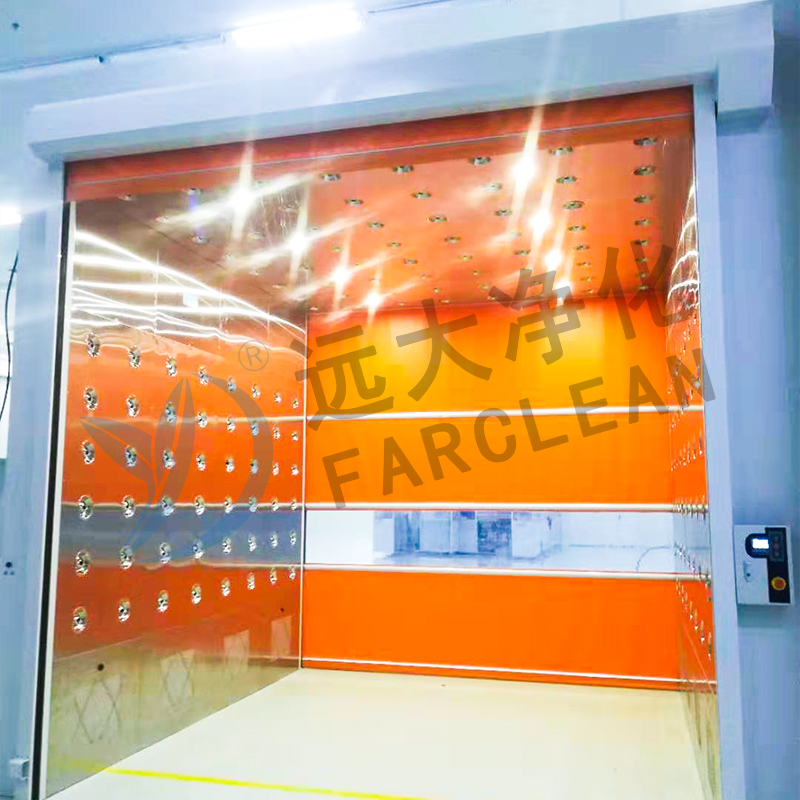

PVC shutter doors are widely used in dust-free workshops, air shower rooms, precision machinery, warehousing and logistics, and other places as well as food, light industry, electronics, medicine, printing, new energy, and other industries.
Product features:
1. PVC fast rolling shutter doors can be opened quickly and operated with high frequency, improving working efficiency and creating a better working environment
2. Designed with a sealed structure, the PVC fabric is dust-resistant and has a smooth surface. It is easy to clean and comes in an optional color, and the installation does not take up floor space, meeting the needs of high-performance logistics and cleaning locations.
3. With an anti-clip function and multiple safety protection, when there are personnel or goods under the door, the door will stop closing and automatically rise to avoid accidental collision.

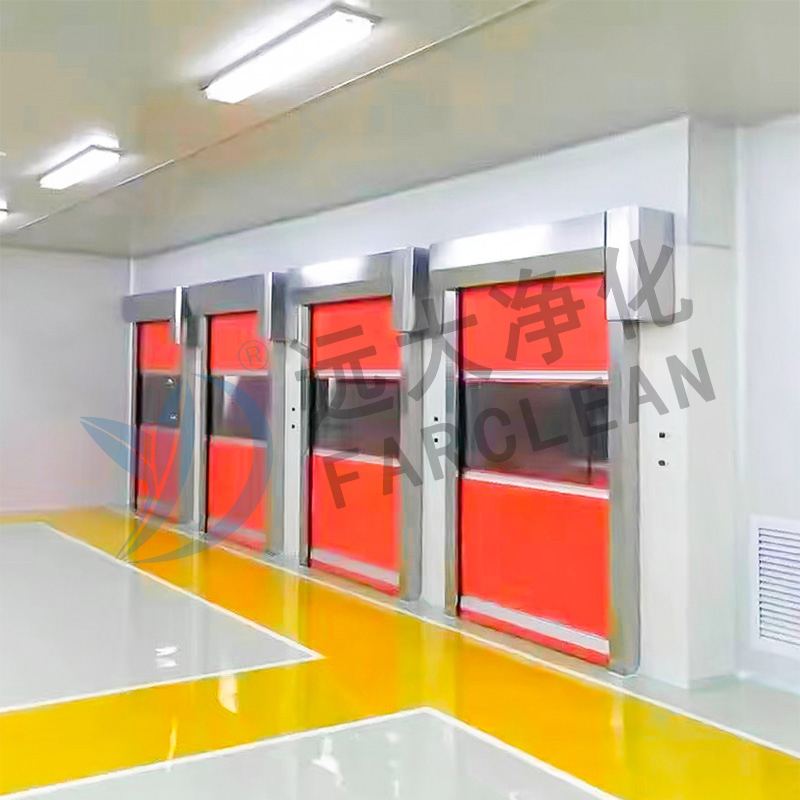

1 The application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries that have the need for purification workshops (mainly electronics factories are widely used, material circulation doors); Features: smooth surface, easy to clean, optional color, fast opening speed, installation does not occupy flat space.
2. Product specifications
3. Installation node diagram

1. The motor and electric control cabinet must be grounded for protection
2. When installing and commissioning the door, it is strictly forbidden to walk or walk under the door.
3. When the generator unit is installed, the door shaft needs to be inserted in more than half of the reduced
4. Before closing the door curtain, check whether there are obstructions under the door curtain. If so, clean it up.

4. Technical parameters
1. Opening speed: 0.6-1.5M/S (adjustable speed)
2. Closing speed: 0.6-1.5M/S
3. Door curtain:The door curtain is crafted from a 0.9mm thick that is wear-resistance. With a warp and weft abrasion coefficient of 600/600 and a tensile strength of 4000/3500, this door curtain is designed to withstand a wide range of temperatures, from -30°C to +60°C.

4. Windows: With/without
5. Wind resistance pole: reinforced aluminum alloy wind resistance pole.
6. Color: Blue/yellow/orange/gray
7. Track: Galvanized sheet 2.0mm thick, white.
8. Sealing brush: It has good sealing properties to ensure its sealing.
9. Control system: Baojiu servo motor control system
10. Wind strength: can resist national standard 6 wind
11. Safety device: infrared photoelectric protection, sensing obstacles automatically rebound
12. Open control: button (control box at 1300 position from the ground)/radar sensing/other customer-specified
13. Motor protection: thermal protection device,
14. The bottom with a counterweight aluminum profile to ensure balance.
