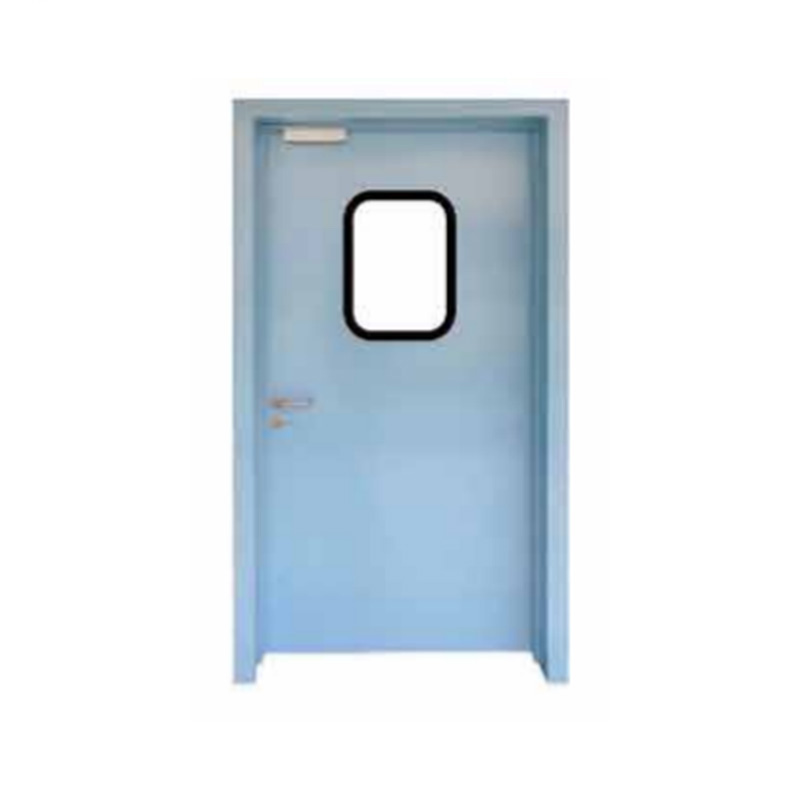

Civil Engineering Cleanroom Door Supplier

1. The opening pattern of a clean door can be divided into left-open and right-open single doors; The double doors are divided into an inner and an outer open type; Observation windows can be added separately.
2. Features: Fireproof and durable, with a nice look, easy to clean, easy to open, and good tightness.

We can offer OEM/ODM Civil Engineering Cleanroom Door Design & manufacturing. All these purification products are independently manufactured to ensure compatibility with various components of the system and achieve coordinated operation of the entire project.

About Us
Suzhou Yuanda Purification

Founded in 2002, Suzhou Yuanda Purification is a professional manufacturer of purification doors, windows, and Sandwich panels. As an important role as China Civil Engineering Cleanroom Door Supplier, we also provides clean room equipment and supporting products such as air shower rooms, transfer windows, fast-rolling shutter doors, fire doors, FFUs, and clean sheds. The products produced are widely used in industries such as electronics and appliances, biomedicine, food, cosmetics, new energy, and school scientific research.

After more than 20 years of development, to better serve its customers, the company has also established Suzhou PURIFY Purification Technology Co., Ltd. to customize solutions for dust-free workshop purification projects for various industries. It has a one-stop service system from comprehensive enterprise plant planning, design, construction, product production and supply to help customers create high-quality clean rooms and bring them a high-quality cleaning experience. The company has always adhered to the corporate spirit of "pragmatic, hard work, and responsibility", and created a good business environment with integrity, win-win, and innovative business concepts. With a new management model, refined technology, thoughtful service and high quality, we have always adhered to the principle of giving priority to customer satisfaction and serving them with care.

Certificate Of Honor
  • Qualification certification
  • Qualification certification
  • Qualification certification
News
Civil Engineering Cleanroom Door Industry knowledge

1. The application of the product industry: mainly used in the purification workshop needs of biopharmaceutical, cosmetics, food, electronics, hospitals and other industries of the outer wall; Features: The surface is smooth, easy to clean, and the color is optional (the clip-on installation mode can eliminate the closing of the door in the later period, and has the depth adjustment of the wall thickness difference within 30mm thickness).

2. Product specifications

3. Install the node diagram
① Door frame 50/75/100 thick installation: The following example door frame is 100 thick
② Clamp door frame installation (need to know the size of the hole): as shown below
(3) Single-face clamp door frame installation (for the wall thicker than 500mm): as shown below



4. Technical parameters
4.1 Door frame: 1.0mm/1.2mm/1.5mm thick galvanized sheet/stainless steel
4.2 Door plate: 1.0mm thick galvanized plate/stainless steel
4.3 Lock: Anheng round head stainless steel handle lock/other brands of stainless steel handle lock (VBH, Doma, Geiser, etc.)
/ Elbow lock/other
4.4 Hinge (hinge): 304 stainless steel hinge/spring hinge/other
4.5 Latch: 304 stainless steel latch Double doors, such as with lower latch, need to open holes on the ground and the bottom of the door plate 50mm cannot be sealed
4.6 Filler: Paper honeycomb/aluminum honeycomb/Rockwool/other
4.7 Sweeping Note: Yes/no
4.8 Interlock: with/without clear and hidden packaging
4.9 Access control: with/without clear installation and hidden installation
4.10 Threshold: Yes/No

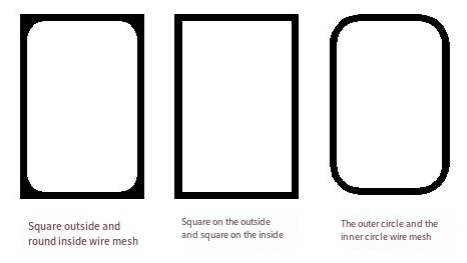

4.11 Window: The window is flush with the door panel, size: Round window R101 386*586*5/ Square window 400*600*5/ customer specified (the designated size window has no flanging on four sides) the glass is 40mm black/white edge printed with "3c/ broad" words; Window around the use of flanging process, embedded 304 stainless steel/white/black, while the window using three processes to ensure that the window inside fog.

4.12 Thickness of door panel: 50mm thick
4.13 Door frame thickness: Select according to wall thickness and installation method
4.14 Door closers (optional) : open/dark (sandwich type can not be hidden)
4.15 Color: Broad Color card/Lauer color card/Chinese Architectural color card/other (outdoor, fluorocarbon (biopharmaceutical resistant VHP disinfection), antibacterial (hospital), antistatic (electronics industry), etc.)
4.16 Opening direction: as shown in the figure (the opening direction is determined according to the gate)
