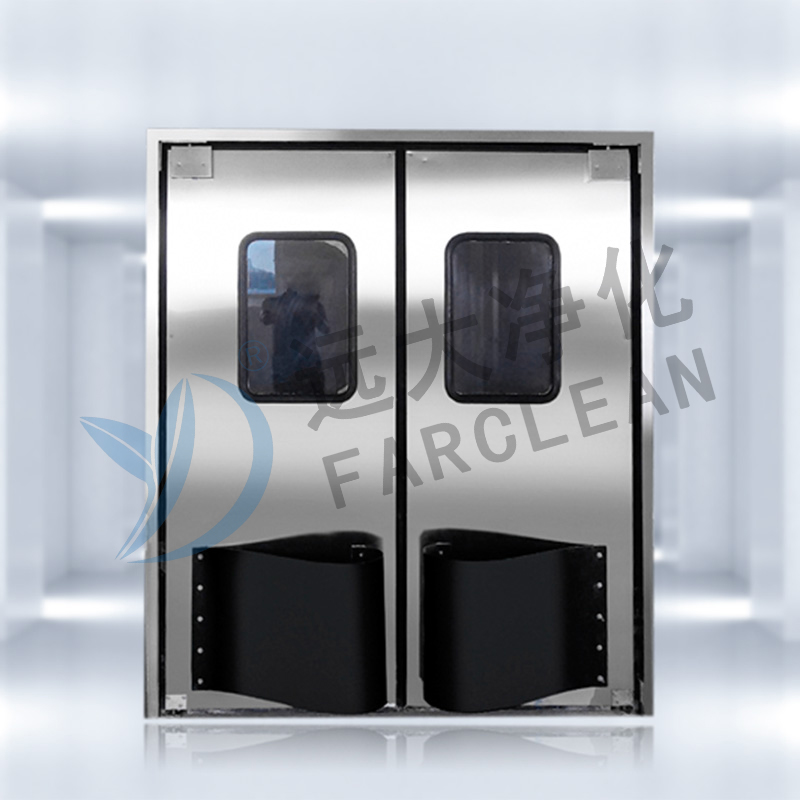

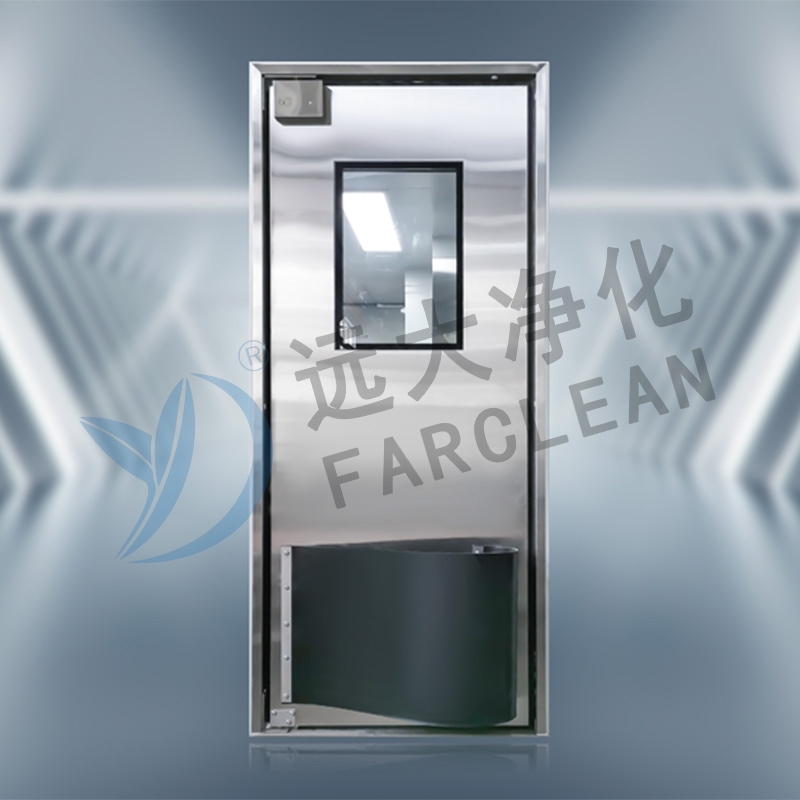

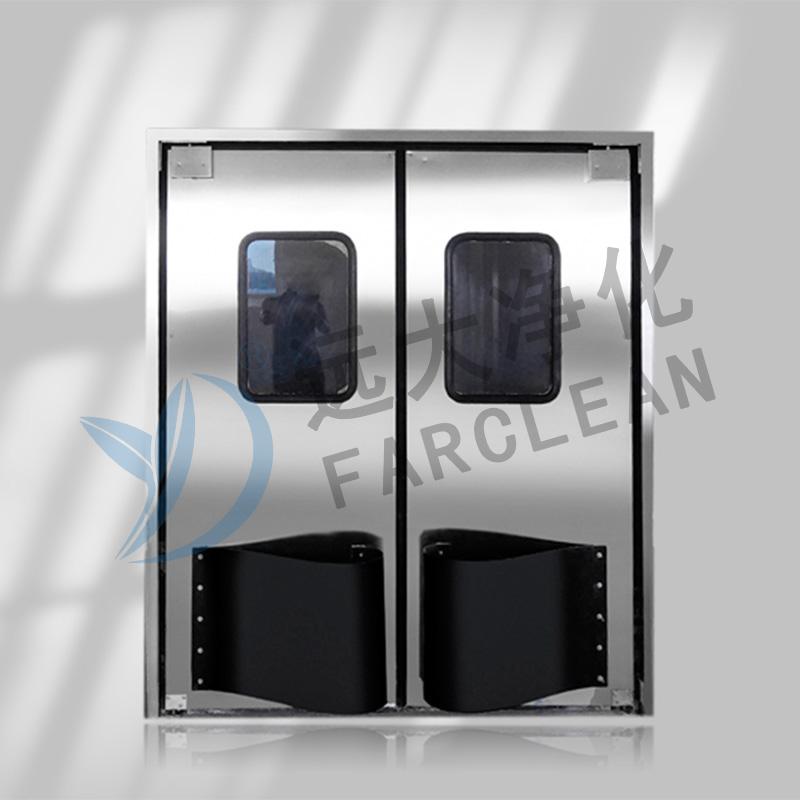

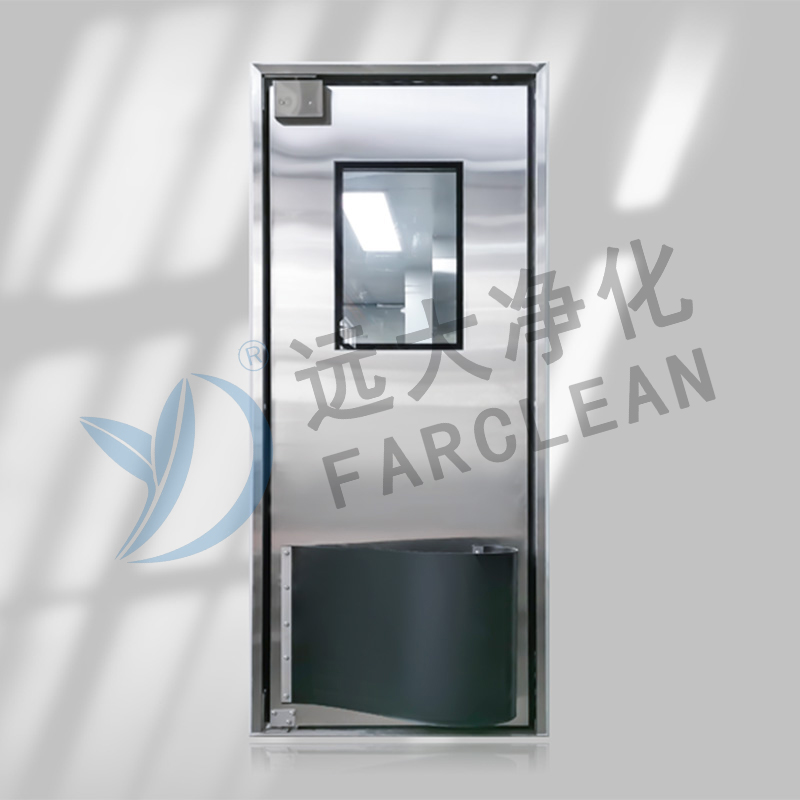

Stainless Steel Traffic/Impact Door

1, the application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries that have the needs of purification workshops; Features: Smooth surface, easy to clean, color optional.
2. Product specifications
3. Install the node diagram
Manual plate reserved hole (according to the size of the door frame, 5mm width, 3mm height)
Flush installation: as shown below

4. Technical parameters
4.1 Door frame: 1.0mm/1.2mm/1.5mm thick galvanized sheet/stainless steel
4.2 Door panel: 1.0mm thick stainless steel
4.3 Hinge (hinge): self-resetting type heaven and earth rotation shaft
4.4 Filler: 40mm thick B1 class extruded board, flame retardant, no fire
4.5 Sealing strip: special sealing strip around the door panel
4.6 Anti-collision plate: Black 5mm thick PE rubber anti-collision plate
4.7 Window: The window is flush with the door panel, size: Round window R101 386*586*5/ Square window 400*600*5/ customer specified (the designated size window has no flanging on four sides) the glass is 40mm black/white edge printed with "3c/ broad" words; Window around the use of flanging process, embedded 304 stainless steel/white/black, while the window using three processes to ensure that the window inside fog.
4.8 Thickness of door panel: 40mm thick
4.9 Door frame thickness: 87mm/ other
4.10 Driving direction: based on site requirements
