OEM/ODM Handmade Steel Cleanroom Door Design

Home / Product / Cleanroom Doors / Steel Cleanroom Doors / Handmade Steel Cleanroom Door
Product Categories
Hot Products

Handmade Steel Cleanroom Door Supplier

Products characteristic
The opening pattern of a clean door can be divided into left-open and right-open single doors; The double doors are divided into an inner and an outer open type; Observation windows can be added separately.
It is suitable for colored steel plates, civilian walls, lightweight steel keel structures, etc.
It features fire resistance and durability, a nice look, easy to clean, easy to open, and good tightness.
In terms of applications, they are widely used in color plate environmental purification projects covering pharmaceutical, food, cosmetics, and electronics manufacturing industries.
1. Industry Applications: Our product is predominantly utilized in industries requiring cleanroom environments, such as biopharmaceuticals, cosmetics, food, electronics, and hospitals. It is specifically designed for dust-free room construction. Key Features: The product boasts a smooth surface, facilitating easy cleaning, and is available in a range of colors to suit your preferences.
2. Product Specifications
3. Installation Junction Diagrams
3.1 Handmade Board Hole Reservation (Hole dimensions should be 5mm wider and 3mm taller than the door frame dimensions)
a. Flush-Mounted Installation: As shown in Figure (1)
b. Mid-Aluminum Installation: As shown in Figure (2)
3.2 Handmade Board Hole Cutting
a. Clamp-Style Door Frame Installation (Based on the on-site hole dimensions): As shown in Figure (3)
b. Clamp-Style Door Pocket Installation (Hole dimensions should be 7mm wider and 5mm taller than the door frame dimensions, excluding the sub-frame): As shown in Figure (4)



3.2 Handmade Board Hole Cutting
a. Clamp-Style Door Frame Installation (Based on the on-site hole dimensions): As shown in Figure (3)
b. Clamp-Style Door Pocket Installation (Hole dimensions should be 7mm wider and 5mm taller than the door frame dimensions, excluding the sub-frame): As shown in Figure (4)


4. Technical Specifications
4.1 Door Frame: Constructed with galvanized steel or stainless steel plates, available in thicknesses of 1.0mm, 1.2mm, or 1.5mm.
4.2 Door Panel: Made from 1.0mm thick galvanized steel or stainless steel.
4.3 Locking Mechanism: Round head stainless steel handle lock of AnHeng / other reputable brands such as VBH, DORMA, and GEZE/ elbow locks and other options.
4.4 Hinges (Hinge Brackets): 304 stainless steel/spring hinges/other types.
4.5 Latch Bolt: 304 stainless steel latch bolts double doors with lower latch bolts. The ground needs to be bored and results in a 50 mm non-sealed area at the bottom of the door panel.
4.6 Filling Material: Options include paper honeycomb, aluminum honeycomb, rock wool, or other materials.
4.7 Sweeper: With/Without
4.8 Interlocking: With/Without (divided into visible or hidden)
4.9 Access Control: With/Without (divided into visible or hidden)
4.10 Threshold: Available with or without a threshold.
4.11 Vision Panel: The vision panel is designed to be flush with the door panel. The standard sizes :circular window R101 (386*586*5mm) / square window (400*600*5mm)/ custom (custom sizes can be specified, with the note that specified sizes do not have flanges on the four sides). The glass is surrounded by a 40mm black or white printed band with "3C/Yuanda" markings. The vision panel features a flange process, with inlays of 304 stainless steel or white and black finishes. Three distinct manufacturing techniques are employed to ensure the vision panel remains fog-free internally.


4.12 Thickness of door panel: 50mm thick
4.13 Door frame thickness: 50mm/75mm/100mm/ other
4.14 Door closers (optional): visible or hidden
4.15 Color: Broad Color card/Lauer color card/Chinese Architectural color card/other (outdoor, fluorocarbon (biopharmaceutical resistant VHP disinfection), antibacterial (hospital), antistatic (electronics industry), etc.)

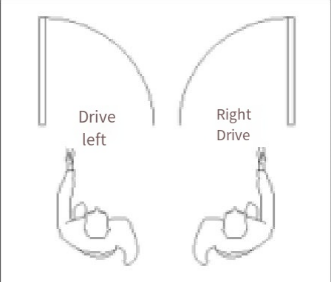

4.16 Opening direction: as shown in the figure (the opening direction is determined according to the gate)

We can offer OEM/ODM Handmade Steel Cleanroom Door Design & manufacturing. All these purification products are independently manufactured to ensure compatibility with various components of the system and achieve coordinated operation of the entire project.

About Us
Suzhou Yuanda Purification

Founded in 2002, Suzhou Yuanda Purification is a professional manufacturer of purification doors, windows, and Sandwich panels. As an important role as China Handmade Steel Cleanroom Door Supplier, we also provides clean room equipment and supporting products such as air shower rooms, transfer windows, fast-rolling shutter doors, fire doors, FFUs, and clean sheds. The products produced are widely used in industries such as electronics and appliances, biomedicine, food, cosmetics, new energy, and school scientific research.

After more than 20 years of development, to better serve its customers, the company has also established Suzhou PURIFY Purification Technology Co., Ltd. to customize solutions for dust-free workshop purification projects for various industries. It has a one-stop service system from comprehensive enterprise plant planning, design, construction, product production and supply to help customers create high-quality clean rooms and bring them a high-quality cleaning experience. The company has always adhered to the corporate spirit of "pragmatic, hard work, and responsibility", and created a good business environment with integrity, win-win, and innovative business concepts. With a new management model, refined technology, thoughtful service and high quality, we have always adhered to the principle of giving priority to customer satisfaction and serving them with care.

Certificate Of Honor
  • Qualification certification
  • Qualification certification
  • Qualification certification
News
Handmade Steel Cleanroom Door Industry knowledge
1, the application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals, and other industries that have the needs of purification workshops; Features: Smooth surface, easy to clean, color optional.

2. Product specifications

3. Install the node diagram

3.1 The hole reserved for the manual plate (leave the hole according to the outline size of the door frame, 5mm width, 3mm height)

① Flush installation: Figure (1)

② Medium aluminum installation: Figure (2) below


3.2 Open holes manually

① Clamp door frame installation (customized according to the site entrance): as shown below (3)

② Clamp door cover installation (according to the size of the door frame to leave holes (attached frame is not included), width plus 7mm, height plus 5mm) : as shown below (4)

4. Technical parameters

4.1 Door frame: 1.0mm/1.2mm/1.5mm thick galvanized sheet/stainless steel

4.2 Door plate: 1.0mm thick galvanized plate/stainless steel

4.3 Lock: Anheng round head stainless steel handle lock/other brands of stainless steel handle lock (VBH, Doma, Geiser, etc.)/ Elbow lock/other

4.4 Hinge (hinge): 304 stainless steel hinge/spring hinge/other

4.5 Latch: 304 stainless steel latch Double doors, such as with lower latch, need to open holes on the ground and the bottom of the door plate 50mm cannot be sealed

4.6 Filler: Paper honeycomb/aluminum honeycomb/Rockwool/other

4.7 Sweeping Note: Yes/no

4.8 Interlock: with/without clear and hidden packaging

4.9 Access control: with/without clear installation and hidden installation

4.10 Threshold: Yes/No

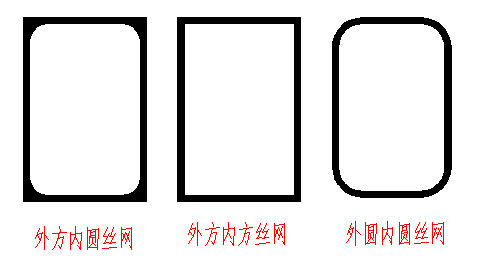

4.11 Window: The window is flush with the door panel, size: Round window R101 386*586*5/ Square window 400*600*5/ customer specified (the designated size window has no flanging on four sides) the glass is 40mm black/white edge printed with "3c/ broad" words; Window around the use of flanging process, embedded 304 stainless steel/white/black, while the window using three processes to ensure that the window inside fog.

4.12 Thickness of door panel: 50mm thick

4.13 Door frame thickness: 50mm/75mm/100mm/ other

4.14 Door closers (optional): open/dark

4.15 Color: Broad Color card/Lauer color card/Chinese Architectural color card/other (outdoor, fluorocarbon (biopharmaceutical resistant VHP disinfection), antibacterial (hospital), antistatic (electronics industry), etc.)

4.16 Opening direction: as shown in the figure (the opening direction is determined according to the gate)
