OEM/ODM Machine-Made Steel Clean Room Door Design

Home / Product / Clean Room Doors / Steel Clean Room Doors / Machine-Made Steel Clean Room Door
Product Categories
Hot Products

Machine-Made Steel Clean Room Door Supplier

Product characteristics
1. The opening mode of the clean door can be divided into single doors left open, and right open; The double door is divided into inner open type and outer open type; Observation Windows can be added separately.
2. Suitable for Sandwich panel, civil walls, light steel keel structures, etc.
3. Fireproof and durable, beautiful appearance, easy to clean, easy to open, good tightness.
Application
They are widely used in color steel wall purification projects, covering medicine, food cosmetics, and electronic manufacturing industries.

We can offer OEM/ODM Machine-Made Steel Clean Room Door Design & manufacturing. All these purification products are independently manufactured to ensure compatibility with various components of the system and achieve coordinated operation of the entire project.

About Us
Suzhou Yuanda Purification

Founded in 2002, Suzhou Yuanda Purification is a professional manufacturer of purification doors, windows, and Sandwich panels. As an important role as China Machine-Made Steel Clean Room Door Supplier, we also provides clean room equipment and supporting products such as air shower rooms, transfer windows, fast-rolling shutter doors, fire doors, FFUs, and clean sheds. The products produced are widely used in industries such as electronics and appliances, biomedicine, food, cosmetics, new energy, and school scientific research.

After more than 20 years of development, to better serve its customers, the company has also established Suzhou PURIFY Purification Technology Co., Ltd. to customize solutions for dust-free workshop purification projects for various industries. It has a one-stop service system from comprehensive enterprise plant planning, design, construction, product production and supply to help customers create high-quality clean rooms and bring them a high-quality cleaning experience. The company has always adhered to the corporate spirit of "pragmatic, hard work, and responsibility", and created a good business environment with integrity, win-win, and innovative business concepts. With a new management model, refined technology, thoughtful service and high quality, we have always adhered to the principle of giving priority to customer satisfaction and serving them with care.

Certificate Of Honor
  • Qualification certification
  • Qualification certification
  • Qualification certification
News
Machine-Made Steel Clean Room Door Industry knowledge
1, the application industry of the product: mainly used in the clean room decoration of biopharmaceutical, cosmetics, food, electronics, hospitals and other industries that have the needs of purification workshops; Features: smooth surface, easy to clean, optional color, after the installation of the door frame and the wall is not flush.

2. Product specifications

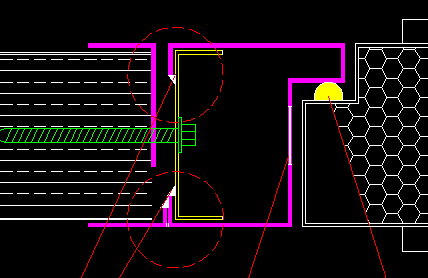

3. Install the node diagram

3.1 Holes are opened on the mechanical board

① Clamp door frame installation (customized according to the site entrance) : as shown below

② Clamp door cover installation (according to the size of the door frame to leave holes (attached frame is not included), width plus 7mm, height plus 5mm) : as shown below





4. Technical parameters

4.1 Door frame: 1.0mm/1.2mm/1.5mm thick galvanized sheet/stainless steel

4.2 Door plate: 1.0mm thick galvanized plate/stainless steel

4.3 Lock: Anheng round head stainless steel handle lock/other brands of stainless steel handle lock (VBH, Doma, Geiser, etc.)

/ Elbow lock/other

4.4 Hinge (hinge) : 304 stainless steel hinge/spring hinge/other

4.5 Latch: 304 stainless steel latch Double doors, such as with lower latch, need to open holes on the ground and the bottom of the door plate 50mm cannot be sealed

4.6 Filler: Paper honeycomb/aluminum honeycomb/Rockwool/other

4.7 Sweeping Note: Yes/no

4.8 Interlock: with/without clear and hidden packaging

4.9 Access control: with/without clear installation and hidden installation

4.10 Threshold: Yes/No

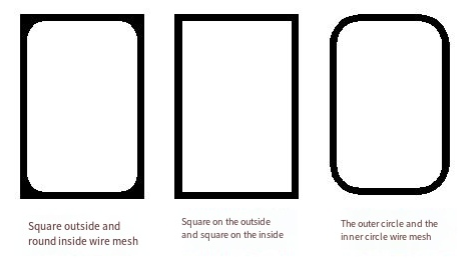

4.11 Window: The window is flush with the door panel, size: Round window R101 386*586*5/ Square window 400*600*5/ customer specified (the designated size window has no flanging on four sides) the glass is 40mm black/white edge printed with "3c/ broad" words; Window around the use of flanging process, embedded 304 stainless steel/white/black, while the window using three processes to ensure that the window inside fog.



4.12 Thickness of door panel: 50mm

4.13 Door frame thickness: 50mm/75mm/100mm/ other

4.14 Door closers (optional) : open/dark

4.15 Color: Broad Color card/Lauer color card/Chinese Architectural color card/other (outdoor, fluorocarbon (biopharmaceutical resistant VHP disinfection), antibacterial (hospital), antistatic (electronics industry), etc.)

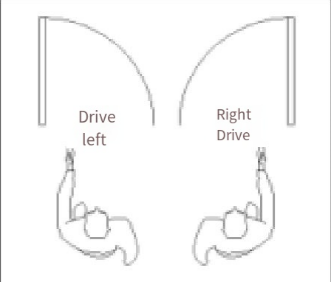

4.16 Opening direction: as shown in the figure (the opening direction is determined according to the gate)
