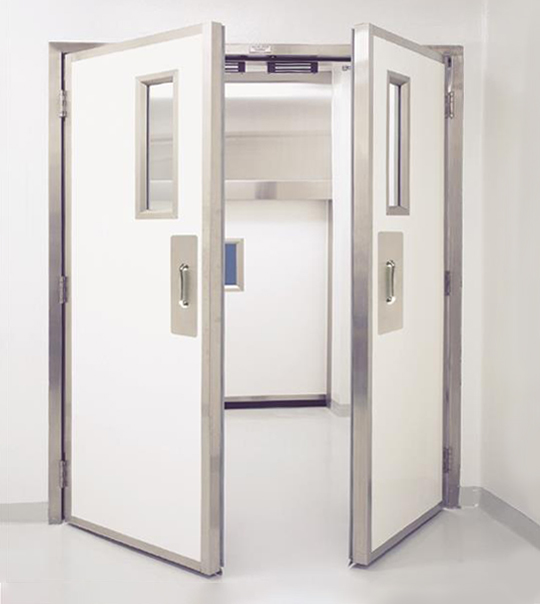

In the pursuit of ultra-clean production and research environments, cleanrooms serve as modern "sanctuaries," where the performance of every component directly impacts product quality and safety. Among these components, the clean room door—seemingly a simple passageway—plays a pivotal role in maintaining the integrity of the controlled environment. It is not only a gateway for personnel and materials but also the line of defense in controlling airflow, maintaining pressure differentials, and preventing external contamination. With the rapid advancement of high-end manufacturing and life sciences, the performance requirements for doors have become increasingly stringent. This article explores the latest trends and practices in material selection and automation performance for cleanroom doors, providing a comprehensive reference for industry professionals.
Material Selection: The Foundation of a Clean Barrier
The materials used for doors directly determine their airtightness, corrosion resistance, structural strength, and service life. Currently, stainless steel, aluminum alloy, and composite materials dominate the market, each with unique characteristics suitable for different applications.
1. Stainless Steel Doors: Robust Guardians for High-Cleanliness Environments
Stainless steel doors are indispensable in the highest-standard clean environments due to their exceptional durability and corrosion resistance.
Key Advantages:
Doors made from 304 or 316-grade stainless steel can withstand frequent exposure to various chemical disinfectants, making them ideal for pharmaceuticals, biomedicine, and high-end food processing. Their high structural strength ensures the door maintains shape over long-term use, preserving consistent airtight performance. Additionally, the smooth, non-porous surface facilitates easy cleaning and disinfection without dead corners.
Considerations:
The relatively heavy weight of stainless steel doors requires high-performance automated door drives capable of handling the torque and ensuring longevity. Furthermore, higher initial costs and potential thermal conductivity effects (which may impact specific temperature-controlled scenarios) must be taken into account during selection.
2. Aluminum Alloy Doors: A Balanced Choice of Lightweight and Cost Efficiency
Aluminum alloy doors offer an effective solution for cleanrooms where weight and cost considerations are critical.
Key Advantages:
Aluminum alloy is lightweight yet strong, making the door naturally suited for fast and smooth automated operation. This reduces energy consumption and extends the lifespan of the automation system. From a cost perspective, aluminum doors are generally more competitive than stainless steel while maintaining adequate resistance to general corrosion.
Considerations:
Its absolute strength and impact resistance are lower than stainless steel, so additional protective measures may be necessary in areas with frequent material handling or accidental impacts. Therefore, aluminum doors are more commonly used in clean room with primarily personnel movement and lower impact risk, such as electronics manufacturing or light industry production lines.
3. Composite Doors: Modern Solutions with Customizable Performance
Composite doors, such as steel-core composite or high-performance PVC doors, integrate the advantages of multiple materials through innovative structural design.
Key Advantages:
The greatest strength of composite doors lies in their design flexibility. By filling the interior with high-density cores and applying high-performance surface coatings, these doors can achieve sound insulation and airtightness while controlling overall weight. They often provide outstanding chemical resistance and scratch resistance, with appearance and color customizable to match the cleanroom’s overall aesthetics.
Considerations:
These doors typically fall into a mid-to-high price range, and product quality can vary between manufacturers in terms of long-term wear resistance and structural integrity. They are widely used in environments requiring comprehensive performance in cleanliness, sound insulation, and aesthetics, such as semiconductor manufacturing and high-grade laboratories.
Cleanroom Door Material Performance Comparison
| Performance Attribute | Stainless Steel Door | Aluminum Alloy Door | Composite Door |
|---|---|---|---|
| Corrosion Resistance | Very High | Good | Good to Excellent |
| Structural Strength | Very High | Medium | Medium to High |
| Weight Level | Heavy | Light | Adjustable, typically Medium |
| Sound Insulation | Good | Medium | Usually Excellent |
| Cost Level | High | Medium | Medium to High |
| Typical Applications | Pharmaceuticals, Biomedicine, Food Processing | Electronics, Light Industry | Semiconductor, High-Grade Laboratories |
Automation Empowerment: From Static Barriers to Intelligent Nodes
Modern doors are no longer simple manual components. The deep integration of automation technology has transformed them into dynamic, intelligent nodes within the environmental management system.
Precise Control with Automated Door Systems
Using infrared sensors, pressure-sensitive mats, access card readers, or remote control, personnel can pass through doors without directly touching the door surface. This significantly reduces the risk of cross-contamination caused by human contact and enhances passage efficiency, especially in scenarios where personnel carry materials or must maintain sterile conditions.
Deep Collaboration with Airflow Management
High-level door control systems can be integrated with the building management system (BMS). By programming door opening speed, angle, and closing delay, the system can finely control air leakage or backflow during door operation, thereby maintaining stable positive or negative pressure within the cleanroom.
For example, at material transfer points, doors can be configured to open quickly, pause briefly, and close rapidly, minimizing pressure fluctuations.
Intelligent Monitoring and Data Integration
Modern automated door systems themselves serve as valuable data sources. They can monitor door status, operational cycles, and fault alerts in real time.
- This data supports predictive maintenance, allowing potential mechanical failures to be identified in advance.
- It can be integrated into Manufacturing Execution Systems (MES) or Supervisory Control and Data Acquisition (SCADA) systems, providing actionable insights for production traceability, personnel activity analysis, and energy management.
This integration transforms cleanroom doors into a critical element of a truly intelligent factory.
Pursuing Optimal Performance: Airtightness and Acoustic Design Strategies
Even with high-quality materials and automation systems, detailed design remains critical to the final performance of doors.
Improving Airtightness through Effective Sealing
- Seal Design and Material: Using seals made of ethylene propylene diene monomer (EPDM) rubber or other elastic, aging-resistant materials is essential. Common designs include double-lip seals and inflatable air-bag seals, forming multiple airtight barriers when the door is closed.
- Integration with Door Frame and Wall: Airtightness depends not only on the door but also on precise integration with the wall. Embedded installation or special edge finishing ensures a seamless transition between the door frame and cleanroom panels, eliminating potential leakage.
- Balance of Closing Force and Seal Pressure: The force applied by automatic closers or electric drives must be precisely calculated to ensure complete closure and proper compression of seals without causing premature wear on the door or sealing materials.
Optimizing Acoustic Performance through Barrier and Absorption
- Material Density and Structure: Acoustic performance follows the mass law—heavier materials provide better sound insulation. Stainless steel and composite doors naturally offer advantages.
- Internal Filling: Incorporating sound-absorbing materials such as rock wool or glass wool inside the door effectively blocks and absorbs sound energy.
- Composite Structures: Multi-layer "sandwich" constructions combined with damping strips interrupt sound bridges, significantly improving overall acoustic performance.
Impact of Design Strategies on Performance
Design ObjectiveCore Design StrategyExpected
| Design Objective | Core Design Strategy | Expected Performance Improvement |
|---|---|---|
| Airtightness Enhancement | Dual EPDM seals, inflatable air-bag seal | Significantly reduced leakage; effectively maintains pressure requirements for ISO 5 and above |
| Airtightness Enhancement | High-precision door frame integrated with wall | Eliminates edge leaks, improves overall sealing reliability |
| Acoustic Optimization | High-performance internal sound-absorbing materials | Reduces noise transmission by several decibels, improving the working environment |
| Acoustic Optimization | Multi-layer composite damping door structure | Particularly effective at blocking mid-to-low frequency noise |
Comprehensive Selection Guide: Scientific Decision-Making Tailored to Context
Faced with a variety of options, how can you select the suitable clean room door? The following framework provides several dimensions for consideration.
1. Compliance with Cleanroom Classification
For ultra-high cleanliness environments at ISO 5 (Class 100) and above—such as sterile injection production lines or chip lithography areas—doors with the reliable airtightness, like stainless steel doors or high-performance composite doors, should be prioritized.
For medium cleanliness zones at ISO 6 to ISO 8 (Class 1,000–100,000), aluminum alloy doors or standard composite doors with balanced performance typically suffice.
2. Matching Specific Application Scenarios
Pharmaceutical and Medical Fields:
Key requirements include corrosion resistance, frequent disinfection, and high airtightness. Recommended solutions are stainless steel automatic sliding doors or rapid-roll doors, equipped with strict interlocking systems.
Electronics and Semiconductor Fields:
Beyond high cleanliness, there are special needs for antistatic performance, sound insulation, and vibration damping. Composite doors with antistatic coatings or specific aluminum alloy doors, integrated with advanced intelligent control systems, are suitable choices.
3. Lifecycle Cost Considerations
Selection should not be based solely on initial procurement cost but should evaluate total cost over the entire service life. This includes:
- Maintenance Costs: Stability of the automation system, ease of obtaining spare parts, and responsiveness of after-sales service.
- Service Life: High-quality materials and reputable automated systems may have higher upfront costs but offer longer service life and lower failure rates, which can be more economical in the long run.
- Energy Consumption Costs: Efficient automated doors coordinated with airflow management can reduce clean room energy consumption, idel to ongoing operational savings.
In the grand blueprint of cleanroom construction, the clean room door may seem like a small component, but it profoundly impacts overall stability and safety. Material science provides a robust structural "body," while automation and intelligent technologies inject responsive "nervous system" capabilities.
When making decisions, only by systematically considering cleanroom classification, application scenarios, cost, and maintenance can this "gateway" serve as a reliable barrier safeguarding product quality and research outcomes.
With continuous technological advancement, future doors will integrate more intelligently and efficiently with controlled environments, consistently supporting the development of cutting-edge industries.
