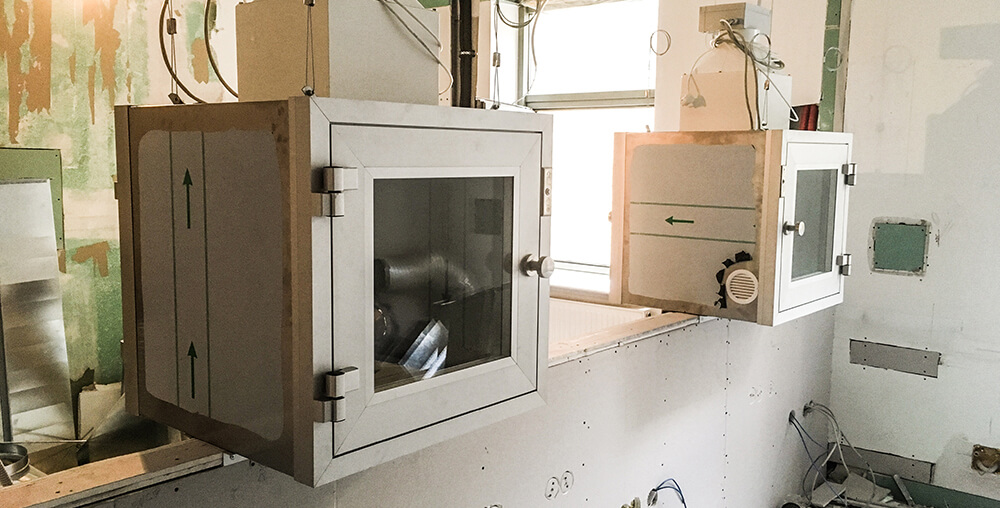

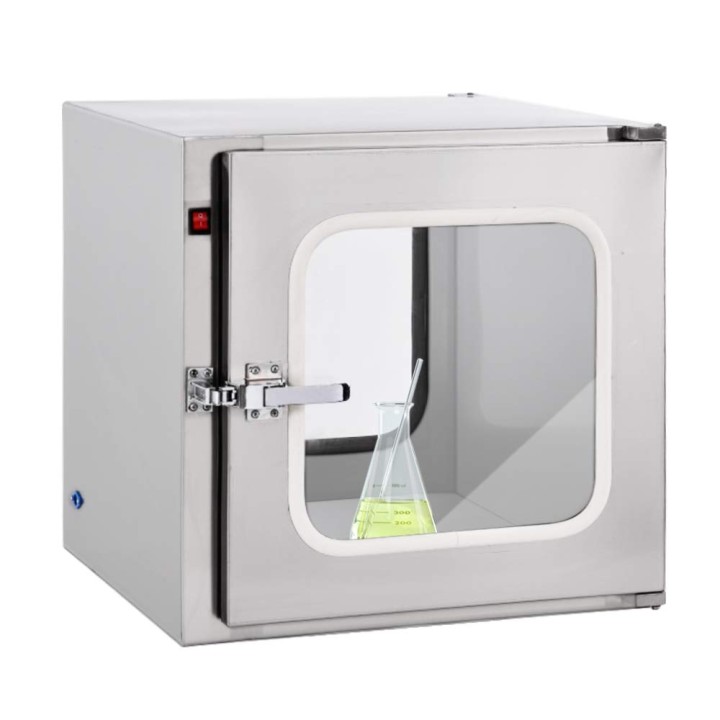

A Pass Through Box (also known as a transfer window or transfer box) is a material transfer device used in cleanrooms and high-standard laboratory environments. Its primary function is to transfer materials between areas of different cleanliness levels while preventing cross-contamination. In simple terms, it acts as a "safe transfer station," ensuring that items do not come into contact with external air during transfer, thereby maintaining the cleanliness of the environment.
Boxes are commonly used in pharmaceutical factories, electronics manufacturing, food processing facilities, and biological laboratories, where strict control of microorganisms, dust, or particles is required.
Core Value of Pass Through Box
The core value of a Box lies in material selection, manufacturing process, and functional value, with each aspect directly affecting the device's performance and user experience in a cleanroom environment.
1. Material Selection
Stainless Steel (304/316): Offers corrosion resistance and oxidation resistance, capable of withstanding moisture, chemical cleaners, and high temperatures over long periods. The finely polished surface not only looks smooth and aesthetically pleasing but also significantly reduces the adhesion of particles and dust, making cleaning and sterilization easier. Stainless steel Boxes ensure long-term stable operation in high-standard environments such as pharmaceutical production, electronics manufacturing, and biological laboratories.
Aluminum Alloy: Lightweight yet strong, making installation and relocation easier. Aluminum surfaces are usually anodized to enhance wear and corrosion resistance while maintaining an attractive appearance.
High-Performance Glass (Tempered or Laminated Glass): Transparent and heat-resistant, allowing operators to clearly observe the contents inside and prevent operational errors. Transparency also enables material verification without opening the door, reducing cross-contamination risks.
| Material | Characteristics | Application Advantages |
|---|---|---|
| Stainless Steel | Corrosion-resistant, easy to clean | Long-term use, easy maintenance |
| Aluminum Alloy | Lightweight, strong | Easy to install and move |
| High-Performance Glass | Transparent, heat-resistant | Real-time observation of internal materials |
The choice of materials directly affects the durability, cleanliness, and safety of the Box and also influences the device's lifespan and maintenance requirements.
2. Manufacturing Process
Precision Welding: High-precision welding ensures a sturdy box structure and airtightness. Smooth, seamless welds increase mechanical strength and reduce potential spots for dust or microorganisms to accumulate.
Surface Polishing: Mechanical or chemical polishing makes the surfaces smooth and clean, minimizing particle adhesion and facilitating regular wiping and sterilization. This process is especially suitable for extremely high-cleanliness environments, such as ISO Class 100 or 1000 cleanrooms.
Interlocking Door Design: Pass Through Boxes are equipped with an interlocking door system. When one door is opened, the other automatically locks, preventing outside air from entering the cleanroom and greatly reducing contamination risk. The interlock system can also be integrated with automated controls for contactless operation, further improving safety and efficiency.
The precision of the manufacturing process determines the reliability and safety of the device, making it a key aspect of the Box's core value.
3. Functional Value
Contamination Prevention: With a highly sealed box and interlocking doors, the Box effectively isolates air between different cleanroom levels, reducing the risk of cross-contamination from microorganisms, dust, or particles. Combined with high-efficiency filtration systems such as HEPA filters, the internal environment is maintained clean, meeting strict standards in pharmaceutical, electronics, or food processing industries.
Efficient Transfer: Traditional material transfer often requires manual door operation or multiple personnel, to delays and contamination risks. The Pass Through Box allows materials to be quickly and safely transferred between areas of different cleanliness levels, saving time and improving production or laboratory efficiency.
Customizability: Depending on cleanroom classification, material size, and operational requirements, the Box can be customized in dimensions, door type, automation, observation windows, and additional features such as UV sterilization, air purification, or pressure monitoring. This flexibility allows adaptation to complex operational conditions and improves cleanroom management.
The Box is not just a tool for material transfer; it is a core device that enhances cleanroom safety and operational efficiency, with its functional value directly affecting the stability and safety of production or experimental processes.
Core Competitiveness of the Pass Through Box
The core competitiveness of a Box lies not only in its basic functionality but also in how it provides safe, efficient, and reliable material transfer solutions for cleanroom environments. This can be elaborated through the following aspects:
1. High Sealing and Interlocking Design
Sealing Advantage: The Box features a high-seal structure. The gaps between the box and doors are precisely engineered to minimize air leakage, preventing contamination of the cleanroom's internal air.
Interlocking Door System: Through mechanical or electronic interlocks, when one door is opened, the other automatically locks, preventing outside air from entering the cleanroom. This design not only ensures the safety of the clean environment but also reduces the risk of contamination caused by human error.
Competitive Edge: In multi-level cleanroom environments, this system effectively blocks cross-contamination, providing an advantage that ordinary transfer boxes cannot match.
2. High Reliability Supported by Multiple Materials and Processes
Material Advantage: The combination of high-quality stainless steel, aluminum alloy, and tempered glass ensures corrosion and wear resistance while facilitating cleaning and maintenance.
Process Advantage: Precision welding, surface polishing, and custom fabrication maintain structural stability and durability over long-term use.
Competitive Edge: The choice of materials and craftsmanship guarantees long service life, high durability, and low maintenance costs.
3. Versatile Functionality and Customization
Efficient Transfer: Materials can be transferred quickly and safely between areas of different cleanliness levels, improving operational efficiency.
Optional Intelligent Features: The box can be equipped with UV sterilization, HEPA filters, pressure monitoring, automated controls, and observation windows, meeting diverse operational requirements.
Customizable Design: Dimensions, door types, and additional features can be tailored to the client's space, material specifications, and operational practices.
Competitive Edge: High flexibility and intelligent functionality allow the Box to adapt to complex cleanroom environments, making it more valuable than standard, off-the-shelf transfer devices.
4. Safety and Operational Convenience
Operational Safety: The interlocking door system and anti-misoperation design prevent operators from direct contact with the external environment during material transfer, reducing the risk of accidents and contamination.
Operational Convenience: A simple human-machine interface or mechanical operation allows staff to complete material transfers quickly without additional training, saving time and labor.
Competitive Edge: The design ensures both safety and efficiency, enhancing operational convenience without compromising cleanroom security.
5. Enhancing Overall Cleanroom Management
The Box is more than just a material transfer tool; it is a critical component of cleanroom management. Through high sealing, interlocking mechanisms, intelligent monitoring, and multifunctional configurations, it can:
Reduce cross-contamination risks
Improve operational efficiency in the cleanroom
Enhance controllability of the environment
Competitive Edge: The device extends beyond itself to improve the overall safety and efficiency of production, laboratory, and R&D activities.
Working Method and Principle of the Pass Through Box
1. Working Method
The main working method of a Box is to safely and contamination-free transfer materials between areas of different cleanroom classifications. The specific steps are as follows:
1.Material Preparation: Operators place the materials inside the Box, ensuring that the packaging is intact and clean.
2.Door Lock Control: After closing the current door, the interlock system ensures that only the opposite door can be opened, preventing external air from entering the cleanroom.
3.Material Transfer: Materials are safely transferred through the internal chamber to the target area, where operators retrieve them from the opposite side.
4.Cleaning and Sterilization: As needed, UV sterilization or surface wiping can be performed to ensure that the internal environment remains clean after the transfer.
2. Working Principle
The working principle of a Pass Through Box can be summarized as "High Sealing + Interlocking + Physical Isolation":
High Sealing: The box body is constructed with precision welding and sealing strips to minimize air leakage, preventing dust and microorganisms from entering the cleanroom.
Interlocking Mechanism: Mechanical or electronic interlocks ensure that only one door can be opened at a time, preventing contamination of the cleanroom air.
Optional Purification Functions: Some Boxes can be equipped with HEPA filters or air shower systems inside, providing additional air purification for the transferred materials and further reducing contamination risk.
Application Scenarios of the Pass Through Box
The Box is an indispensable material transfer device in cleanrooms and high-standard laboratory environments. Its applications are widespread, especially in industries that are highly sensitive to air cleanliness and cross-contamination. The following are detailed application categories and their advantages:
1. Pharmaceutical and Drug Manufacturing
Usage: Transfer of raw materials, excipients, semi-finished products, and laboratory samples between cleanroom areas of different grades.
Advantages:
Prevents drugs from contamination by microorganisms, dust, or particles
Complies with GMP (Good Manufacturing Practice) standards
Supports high-frequency, rapid material transfer, improving production efficiency
2. Biological Laboratories
Usage: Transfer of biological reagents, cell cultures, sensitive samples, or microbial specimens.
Advantages:
Maintains high cleanliness levels in the laboratory
Reduces cross-contamination risk
Can be combined with UV sterilization or air purification functions to ensure experimental safety
3. Food Processing Industry
Usage: Transfer of packaging materials, seasonings, semi-finished or finished food products.
Advantages:
Prevents dust, insects, and microorganisms from entering production areas
Improves food safety, complying with HACCP or other food safety standards
Supports efficient material transfer, reducing manual handling
4. Electronics and Semiconductor Manufacturing
Usage: Transfer of electronic components, chips, precision parts, or sensitive instruments.
Advantages:
Minimizes dust and static interference on components
Improves product yield and production stability
Can be used with cleanroom air showers or HEPA filters to further reduce contamination risk
5. Medical Devices and Advanced Research Laboratories
Usage: Transfer of high-precision medical devices, experimental reagents, or research samples.
Advantages:
Ensures that medical devices and reagents remain uncontaminated
Complies with ISO or other international cleanroom standards
Suitable for high-risk experimental environments, ensuring operational safety
Service Life and Cleaning & Maintenance of the Pass Through Box
1. Service Life
The lifespan of a Box mainly depends on materials, manufacturing processes, and operating environment:
Material Factors: High-quality stainless steel, aluminum alloy, and tempered glass ensure long-term resistance to corrosion and wear.
Process Factors: Precision welding, smooth surface polishing, and interlock design guarantee structural stability and reduce the risk of damage.
Environmental Factors: When used properly in cleanroom environments and coupled with regular maintenance, the device can operate stably for an extended period.
General Note: With reasonable use and maintenance, a Box can provide reliable service for many years while maintaining consistent performance.
2. Cleaning and Maintenance
Scientific cleaning and maintenance not only extend the lifespan but also ensure device safety and cleanliness:
Daily Cleaning: Wipe the internal and external surfaces with a lint-free cloth to remove dust and particles.
Disinfection: Use UV light or approved disinfectants, especially in pharmaceutical or laboratory environments.
Interlock System Check: Regularly inspect the door locks and sealing strips to ensure proper interlock functionality.
Filter Maintenance: For units equipped with HEPA filters, periodic cleaning or replacement is required to maintain air purification efficiency.
With proper maintenance, the Box can operate efficiently for long periods, reducing the likelihood of malfunctions.
Performance and Efficiency
The performance and efficiency of a Box are reflected in the following aspects:
| Performance Indicator | Effect |
|---|---|
| High Sealing | Prevents dust and microorganisms from entering the cleanroom, ensuring safe transfer |
| Interlocking Door System | Prevents simultaneous door opening that may cause air contamination, improving operational safety |
| Customizable Design | Meets requirements for different dimensions, door types, and functions, enhancing versatility |
| Air Purification Function (Optional) | HEPA filters or air showers reduce particle contamination during transfer |
| Operational Efficiency | Enables rapid material transfer, reducing wait and operation time, improving production or laboratory efficiency |
The Box enables efficient and stable material transfer while ensuring safety and cleanliness in cleanroom environments.
Advantages and Disadvantages of the Pass Through Box
Advantages
1.High Sealing and Contamination Prevention
Interlocking door system and precision sealing design prevent dust, microorganisms, or particles from entering the cleanroom.
Optional HEPA filters or air purification functions further reduce cross-contamination risks.
2.Operational Safety
Interlocked doors and anti-misoperation design reduce human errors.
Material transfer does not require direct contact with the external environment, improving operator safety.
3.Efficient Material Transfer
Rapid transfer of materials between areas of different cleanroom classifications saves operation time.
Supports both automated and manual operation, enhancing production or laboratory efficiency.
4.Multi-Industry Applicability
Widely used in pharmaceuticals, food, electronics, semiconductors, and biological laboratories.
Customizable dimensions, door types, and additional functions allow adaptation to diverse conditions.
5.Durability and Low Maintenance
High-quality stainless steel, aluminum alloy, and tempered glass combined with precision manufacturing ensure long service life.
Regular cleaning and maintenance sustain high-efficiency operation while keeping maintenance costs low.
Disadvantages
1.Higher Initial Investment
High-quality materials and precise manufacturing to higher procurement costs compared with standard transfer boxes.
2.Installation Environment Requirements
Requires cleanroom layout compatibility and door-size matching; precise measurement and planning are necessary before installation.
3.Professional Maintenance for Complex Models
Models with air purification, automation, or UV sterilization require periodic maintenance by trained personnel.
4.Space Occupation
Standard Boxes may require dedicated space in small cleanrooms; otherwise, they may affect workflow or operational efficiency.
| Category | Advantages | Disadvantages |
|---|---|---|
| Sealing & Contamination | High sealing design, interlocking doors prevent dust and microorganisms; optional HEPA/air purification | High-performance sealing may increase initial costs |
| Operational Safety | Interlocked doors, anti-misoperation design reduce human error; material transfer avoids direct contact | Complex models require professional maintenance, increasing maintenance cost |
| Efficiency | Rapid material transfer; supports manual or automated operation | High space requirements in small cleanrooms, requires layout planning |
| Applicability | Multi-industry: pharmaceuticals, food, electronics, labs; supports customization | More customization increases initial investment |
| Durability & Maintenance | High-quality materials (stainless steel, aluminum, tempered glass); precision craftsmanship; low maintenance | Precise measurement and planning required during installation |
Why Choose Yuanda's Pass Through Box?
1.Extensive Professional Experience
Yuanda has many years of experience in cleanroom equipment design and manufacturing, accumulating rich expertise. Whether for pharmaceuticals, electronics, food, or biological laboratories, Yuanda provides Box solutions that meet high cleanliness standards, ensuring stable and reliable operation.
2.High-Quality Materials and Precision Craftsmanship
Material Advantages: High-quality stainless steel, aluminum alloy, and tempered glass provide corrosion resistance, wear resistance, and long-term stability.
Craftsmanship Advantages: Precision welding, surface polishing, and interlocking door design ensure high sealing performance and operational safety.
These factors give Yuanda's Pass Through Box a clear advantage in both performance and durability, suitable for complex cleanroom environments.
3.High Customization Capability
Yuanda's Box can be customized for dimensions, door types, and functions (such as air purification, UV sterilization, and automation). Whether for small laboratories or large production workshops, tailored solutions are available to meet various cleanroom classifications and operational requirements.
4.Comprehensive After-Sales Service
Yuanda provides professional installation guidance, operational training, and maintenance support to ensure long-term efficient operation. Regular maintenance and technical support help customers resolve potential issues promptly, reducing downtime and maintenance costs.
5.Comprehensive Performance Advantages
Choosing Yuanda's Pass Through Box provides the following overall benefits:
High sealing and contamination prevention, ensuring cleanroom safety
Rapid and efficient material transfer, improving work efficiency
Multi-industry applicability with flexible customization
Strong durability and low long-term operational cost
