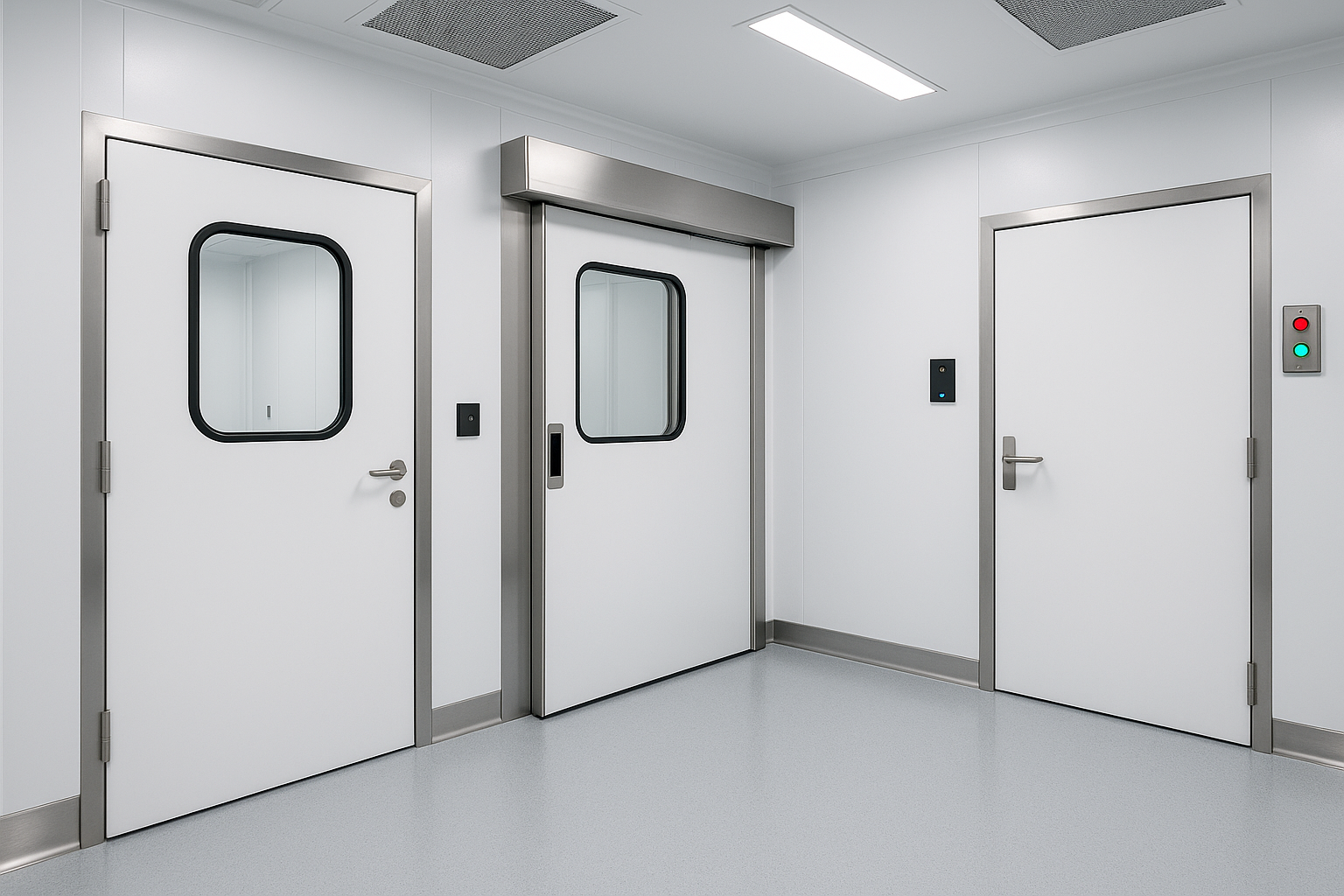

What Are the Differences Between Manual, Automatic, and Interlocking Cleanroom Door Systems?

Cleanroom door systems play a vital role in maintaining environmental control and operational efficiency in industries such as pharmaceuticals, biotechnology, microelectronics, and precision manufacturing. The choice between manual, automatic, and interlocking cleanroom doors depends on the specific cleanliness level, workflow design, and safety requirements of the facility. Each system type offers distinct advantages in terms of functionality, contamination control, and user convenience.

1. Manual Cleanroom Doors

Manual cleanroom doors are the simplest type, typically opened and closed by hand. They are commonly used in areas with low to medium traffic or in controlled zones that do not require frequent entry and exit.

Key Characteristics:

• Structure and Material:Manual doors are usually constructed from stainless steel, aluminum alloy, or coated steel with smooth, non-porous surfaces to prevent particle accumulation.
• Sealing System:Equipped with rubber or silicone gaskets around the edges to achieve airtight performance and maintain positive or negative pressure in the cleanroom.
• Operation:These doors rely on mechanical handles and hinges, offering reliability without electrical components or automation systems.
• Applications:Suitable for laboratories, food processing areas, and secondary clean zones where controlled entry is required but automation is not essential.

Advantages:

• Lower installation and maintenance costs.
• Simple structure and minimal failure risk.
• Ideal for areas where space and movement are limited.

Limitations:

• Manual operation can increase the risk of cross-contamination if personnel touch surfaces frequently.
• Less efficient for high-traffic areas or when personnel must carry equipment during entry.

2. Automatic Cleanroom Doors

Automatic cleanroom doors utilize electric or pneumatic systems for opening and closing, offering a hands-free and efficient entry solution. They are particularly suitable for cleanrooms requiring frequent access or strict contamination control.

Key Characteristics:

• Control System:Operated through sensors, foot pedals, or access cards, reducing physical contact and potential particle introduction.
• Sealing Mechanism:High-performance gaskets and precision-fit frames maintain airtight integrity even under frequent operation.
• Speed and Consistency:The door speed can be adjusted to ensure stable air pressure between clean zones, preventing turbulence or particle migration.
• Integration:Can be linked with air showers, pass boxes, or monitoring systems for synchronized operation.

Advantages:

• Minimizes manual contact, improving hygiene and reducing contamination risk.
• Enhances workflow efficiency and personnel movement.
• Suitable for high-traffic or sterile environments such as pharmaceutical production lines and medical device manufacturing.

Limitations:

• Higher cost due to automation components and control systems.
• Requires regular maintenance and calibration to ensure smooth operation.
• Power failure can affect accessibility if no backup system is installed.

3. Interlocking Cleanroom Doors

Interlocking cleanroom doors, also known as airlock door systems, are designed to control personnel and material flow between different cleanliness levels. These systems allow only one door to open at a time, preventing cross-contamination and maintaining air pressure differentials between adjacent rooms.

Key Characteristics:

• Interlock Mechanism:The doors are electronically or mechanically linked—when one door is open, the other remains locked until the first is securely closed.
• Control Integration:Often combined with cleanroom automation systems to regulate air showers, lighting, and ventilation.
• Construction:Built with highly durable, airtight materials such as stainless steel or coated aluminum panels, with precision sealing to prevent air leakage.
• Applications:Common in high-grade cleanrooms (ISO Class 5–7) used in semiconductor, pharmaceutical, and biotechnology facilities.

Advantages:

• Effectively prevents particle migration between zones.
• Maintains stable pressure differentials to support cleanroom integrity.
• Enhances safety and compliance with GMP or ISO cleanroom standards.

Limitations:

• More complex system requiring electronic or pneumatic control logic.
• Installation and calibration involve higher technical requirements.
• May slow personnel flow if improperly timed or configured.

4. Choosing the Right Cleanroom Door System

Selecting the proper cleanroom door system involves evaluating several factors:

• Cleanroom classification and pressure requirements– Higher-grade cleanrooms often require automatic or interlocking systems.
• Personnel and material flow frequency– Automatic doors are best for high-traffic areas, while manual doors suffice for limited access zones.
• Contamination control standards– Interlocking systems are essential where strict separation between zones is critical.
• Budget and maintenance considerations– Manual doors offer simplicity and cost-effectiveness; automated systems provide efficiency but require more upkeep.

5. Conclusion

The differences between manual, automatic, and interlocking cleanroom door systems lie in their operation methods, automation level, and contamination control capabilities.

• Manual doorsemphasize simplicity and affordability.
• Automatic doorsenhance hygiene and efficiency through contact-free operation.
• Interlocking doorsoffer the highest level of contamination prevention and pressure control between zones.

By understanding the functional distinctions and selecting the appropriate system, cleanroom operators can achieve a balance between performance, safety, and cost, ensuring stable and compliant environmental conditions in critical production areas.
