With the rapid development of high-precision industries such as pharmaceuticals, electronics, and food processing, cleanrooms have become increasingly important in ensuring product quality and production safety. In cleanroom systems, Clean Room Doors and Windows are not only tools for spatial separation but also key components for cleanliness management, airflow control, and safety assurance. So, what materials and specifications do cleanroom doors and windows have? What functions and performance do they offer? What should be considered during installation and maintenance?
Materials and Specifications
The materials and specifications of cleanroom doors and windows are critical factors affecting performance, service life, and the overall operation of the cleanroom. Selecting appropriate materials can enhance durability, reduce maintenance costs, and ensure the cleanroom environment meets strict cleanliness standards.
1. Material Types and Features
1. Stainless Steel (304/316)
Features: Corrosion-resistant, strong antibacterial properties, smooth surface, easy to clean, and can withstand repeated wiping and disinfection.
Applicable Environment: Pharmaceutical, food processing, and biological laboratories with high microbial control requirements.
Advantages: Stainless steel doors and windows are dust-resistant and will not deform or rust over long-term use.
2. Aluminum Alloy
Features: Lightweight, strong rigidity, easy to process, and customizable surface treatments.
Applicable Environment: Electronics factories, instrument rooms, and cleanrooms where weight and installation convenience are important.
Advantages: Aluminum alloy doors and windows are easy to install, support multiple designs, and are suitable for customization.
3. Tempered Glass / Acrylic Glass
Features: Provides visibility, impact resistance, and shatter resistance; withstands high temperatures and common chemical cleaning agents.
Applicable Environment: Observation windows, monitoring rooms, and partitions inside cleanrooms.
Advantages: Transparent materials allow operators to monitor the interior without opening doors, reducing contamination risk.
4. Composite Materials
Features: Combines metal frames with anti-static or high-density polymer panels to improve structural stability and functionality.
Applicable Environment: High-demand electronics and semiconductor cleanrooms.
Advantages: Can meet different cleanliness levels with multi-functional designs, e.g., anti-static or fire-resistant options.
2. Specifications and Applications
The specifications of cleanroom doors and windows directly affect spatial efficiency, personnel and material flow, and airflow management. Common types include:
| Type | Specifications | Application Examples |
|---|---|---|
| Swing Door | Single or double leaf, adjustable thickness, with sealing strips | Personnel passages, laboratory entrances |
| Sliding Door | Suitable for narrow corridors or space-saving requirements | Material transfer, storage areas |

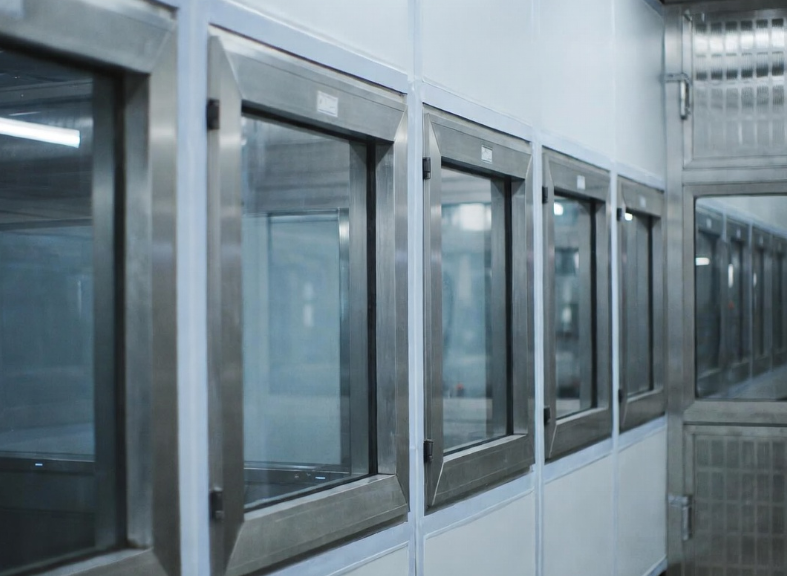

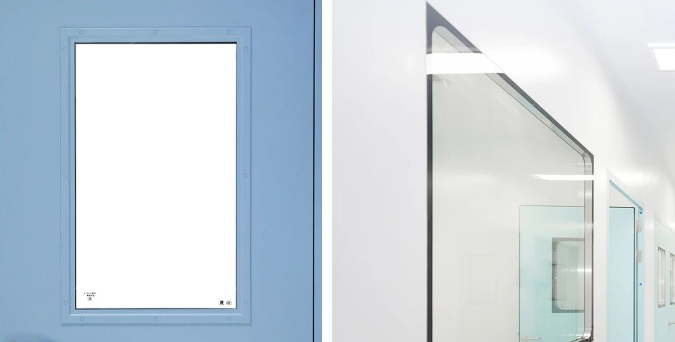

| Observation Window | Single or double glass, with sealing frame | Interior monitoring and operation observation |
| Small Pass-Through Window | Small size for quick material transfer | Small items or sample exchange |
| Automatic Door | Equipped with electric drive system, linked with air showers or purification systems | High-traffic cleanroom entrances |
Note: Door thickness, opening method, and sealing material should be selected according to cleanroom class and pressure difference. Improper specifications may affect airflow and reduce cleanliness.
3. Design Details and Customization
Sealing
Door and window frames usually use durable sealing strips or metal inserts to ensure airtightness.
Airtightness is critical for maintaining positive or negative pressure and controlling particles.
Impact Protection
Frame corners are often rounded to reduce the risk of injury and door damage.
Visualization and Monitoring
Observation windows can be double-layered or insulated, providing clear visibility while also offering thermal and noise insulation.
Customization Options
- Doors and windows can be customized in size, opening direction, and automation features.
- Special materials or composite structures can provide anti-static, fire-resistant, or chemical-resistant properties.
Functions and Performance
Cleanroom doors and windows are more than just partitions; they play a vital role in maintaining a clean environment, ensuring operational safety, and improving production efficiency. Their performance determines whether a cleanroom can maintain stable conditions over time.
1. Dustproof and Sealing Function
Principle: High-quality doors and windows use precise sealing strips and tightly constructed frames to minimize air leakage when closed, maintaining positive or negative cleanroom pressure.
Effect: Prevents dust, particles, and microorganisms from entering, ensuring products or experiments meet cleanliness requirements.
Case: In a pharmaceutical cleanroom, installing well-sealed automatic doors maintained particle counts within target ranges and reduced cleaning and disinfection frequency.
2. Visualization and Observation
Principle: Tempered or acrylic glass windows allow operators to observe the interior without opening the door.
Effect: Reduces door operations, minimizing contamination risk and enabling on-site monitoring.
Case: In an electronics assembly cleanroom, double-layer observation windows allowed clear visibility of equipment operations while avoiding frequent door openings that could disturb airflow.
3. Corrosion Resistance and Easy Cleaning
Principle: Doors and windows use stainless steel or high-grade aluminum alloy surfaces that can withstand cleaning agents and disinfectants.
Effect: Maintains smooth surfaces over long-term use, preventing contamination buildup and extending service life.
Case: In a pharmaceutical cleanroom, daily cleaning with disinfectants left door surfaces free from rust or deformation, reducing maintenance workload.
4. Sound and Thermal Insulation
Principle: Multi-layer composite materials or insulated glass provide acoustic and thermal separation.
Effect: Reduces environmental noise, maintains stable indoor temperature, and improves equipment operation and personnel comfort.
Case: In a cleanroom near noisy machinery, installing soundproof doors reduced noise to safe levels and decreased HVAC load.
5. Automation and System Integration
Principle: Some doors are equipped with electric drive systems that can link with air showers, purification systems, or pass-through windows.
Effect: Automatic opening and closing reduce contamination risk and maintain cleanroom pressure balance.
Case: In a high-grade electronics cleanroom, automatic doors integrated with air showers increased access efficiency while maintaining cleanliness.
6. Function Comparison Table
| Function Category | Key Performance | Applicable Scenario | Actual Effect |
|---|---|---|---|
| Dustproof & Sealing | High airtightness, blocks particles | Pharmaceutical, food, electronics | Maintains cleanliness, reduces cleaning frequency |
| Visualization | Transparent windows, no need to open | Monitoring, operation guidance | Reduces contamination, improves safety |
| Corrosion Resistance / Easy Cleaning | Smooth stainless steel or aluminum surfaces | Pharmaceuticals, laboratories | Long-term use without rust, low maintenance |
| Sound / Thermal Insulation | Multi-layer insulation | Noisy cleanrooms | Reduces noise, maintains temperature stability |
| Automation / Integration | Electric doors linked with air systems | High-traffic cleanrooms | Increases access efficiency, maintains pressure balance |
Installation and Maintenance
The installation and maintenance of cleanroom doors and windows directly affect their performance.
Installation Considerations:
- Sealing treatment: The joints between doors/windows and walls must use high-quality sealing strips or welding to prevent air leakage.
- Dimension calibration: Accurate measurements of door/window dimensions are required before installation to ensure smooth opening and closing.
- Coordination with airflow system: The installation position of doors/windows should align with the cleanroom airflow design to avoid short-circuits or dead zones.
Maintenance Requirements:
- Regularly clean door/window surfaces and sealing strips to prevent dust and microbial accumulation.
- Inspect automatic door rollers, controllers, and locks to ensure proper operation.
- Apply scratch protection to glass windows and replace transparent panels when necessary to maintain clear visibility.
Safety and Control
1. Access Control
Principle: Mechanical locks or electronic access control systems regulate personnel entry, ensuring unauthorized individuals cannot access specific cleanroom areas.
Effect: Reduces contamination risk caused by human error and meets high-grade cleanroom personnel management requirements.
Case: In a pharmaceutical facility, a high-grade cleanroom uses automated doors with card access, allowing entry only to authorized staff, preventing accidental contamination.
2. Emergency Exit and Safety Evacuation
Principle: Doors and windows are designed with emergency opening features, such as anti-pinch mechanisms and quick-release systems, to ensure rapid evacuation in emergencies.
Effect: Even during automatic door failures or high-pressure conditions, personnel safety is ensured.
Case: In an electronics cleanroom, emergency exit features allowed safe evacuation during a power outage without disrupting production.
3. Impact Resistance and Pressure Tolerance
Principle: Observation windows use tempered glass, multi-layer laminated glass, or composite materials to withstand external impact and indoor/outdoor pressure differences.
Effect: Prevents glass breakage or door deformation during operation, reducing injury risks while maintaining cleanroom sealing performance.
Case: In a semiconductor production cleanroom, multi-layer tempered observation windows prevented breakage and seal damage during equipment handling, ensuring continuous production.
4. Automation and Environmental Monitoring
Principle: Automatic door systems can link with air showers, purification systems, and pass-through windows to monitor pressure, airflow, and door status in real time.
Effect: Ensures operations do not disrupt pressure balance or airflow direction, minimizing particle diffusion.
Case: In a biological cleanroom, automatic doors integrated with air purification systems adjusted airflow automatically each time doors were opened, maintaining stable cleanliness levels.
5. Safety and Control Function Comparison Table
| Safety Category | Key Function | Applicable Scenario | Actual Effect |
|---|---|---|---|
| Access Control | Mechanical/electronic locks | High-grade cleanrooms | Reduces human contamination risk, controls personnel flow |
| Emergency Evacuation | Anti-pinch / quick-release | Emergency situations | Ensures safe personnel evacuation |
| Impact/Pressure Resistance | Tempered glass / multi-layer laminated | Observation windows, impact doors | Reduces breakage risk, maintains seal integrity |
| Automation & Integration | Linked with air showers and purification systems | High-traffic cleanrooms | Maintains pressure balance and cleanliness, reduces contamination |
Advantages and Disadvantages
Cleanroom doors and windows play a crucial role in modern high-precision industries. Understanding their advantages and disadvantages helps make better decisions during design, procurement, and operation, thereby improving the overall efficiency of cleanrooms.
1. Advantages
1. High Cleanliness Assurance
Well-sealed doors and windows prevent dust, particles, and microorganisms from entering the cleanroom, maintaining the interior cleanliness.
Case: In a pharmaceutical production cleanroom, installing high-quality stainless steel sealed doors maintained particle counts within target ranges, significantly reducing cleaning and disinfection frequency.
2. Visualization and Monitoring
Transparent observation windows allow operators to monitor the interior without frequent door openings, reducing contamination risk.
Case: In an electronics production cleanroom, double-layer observation windows enabled staff to monitor equipment in real-time while avoiding airflow disturbance.
3. Durability and Easy Maintenance
High-quality materials such as stainless steel, aluminum alloy, and tempered glass offer smooth surfaces, corrosion resistance, and long service life.
Case: In a pharmaceutical cleanroom, doors and window frames remained free of rust or deformation after long-term daily disinfection, lowering maintenance costs.
4. Convenience and Automation
Automated doors integrated with air showers or purification systems improve access efficiency while maintaining pressure balance.
Case: In a high-grade electronics cleanroom, automatic doors enabled frequent personnel and material access while keeping pressure and cleanliness stable.
5. High Safety
Anti-pinch designs, tempered glass, and emergency opening functions effectively ensure operator safety.
Case: In a semiconductor cleanroom, emergency door features ensured safe evacuation during a power outage without interrupting production.
2. Disadvantages
1. Relatively High Cost
Purchasing and installing high-performance doors and automated control systems can be costly for projects with limited budgets.
Analysis: Although initial investment is high, long-term savings in maintenance and reduced contamination losses make it worthwhile.
2. Complex Installation
Requires professional teams for measurement, installation, and commissioning, to longer project timelines.
Analysis: Improper installation may result in poor sealing, affecting cleanliness and pressure control.
3. High Maintenance Requirements
Sealing strips, rollers, controllers, and other components need regular inspection and maintenance to maintain sealing and operational performance.
Analysis: A well-established maintenance schedule and standard operating procedures are essential for long-term stability.
4. Strict Environmental Requirements
High-grade doors/windows require proper installation conditions and surrounding clean environments, such as wall flatness and pressure design.
Analysis: If installation conditions are not met, functionality may be compromised, e.g., slow automatic door operation or reduced sealing performance.
3. Advantages vs. Disadvantages Comparison Table
| Category | Advantages | Disadvantages | Notes |
|---|---|---|---|
| Cleanliness | Good sealing, blocks particles | Improper installation affects sealing | High-grade doors require professional installation |
| Visualization | Transparent windows reduce door openings | Glass requires regular cleaning | Double-layer laminated glass is more durable |
| Durability | Stainless steel, aluminum alloy resistant to corrosion, long service life | High initial cost | Long-term maintenance cost is low |
| Automation | Improves access efficiency, maintains pressure balance | Requires power and control systems | Regular maintenance of rollers and controllers is necessary |
| Safety | Anti-pinch, impact-resistant, emergency opening | Some safety features increase cost | Relies on proper operating procedures |
Reasons to Choose Yuanda Clean Room Doors and Windows
The importance of selecting high-quality cleanroom doors and windows is reflected in several aspects:
1.Overall Quality Assurance
High-quality materials and precise manufacturing ensure long-term stability and reduce maintenance frequency.
2.Professional Design Experience
Provides customized solutions for different cleanroom grades and environmental requirements.
3.Compatibility with Cleanroom Systems
Can integrate with air showers, pass-through windows, and purification systems to achieve full-process cleanliness control.
4.Safety and Human-Centered Design
Offers emergency opening, anti-pinch, and impact-resistant features to ensure operator safety.
Choosing Yuanda Clean Room Doors and Windows not only ensures cleanroom quality but also improves production efficiency and operational safety.
As a critical component of cleanroom environmental management, cleanroom doors and windows directly impact the operation of the facility through their materials, specifications, functions, installation, maintenance, and safety controls. Analysis of different material properties, functional designs, and installation requirements highlights the importance of high-quality doors and windows in maintaining cleanliness, ensuring production safety, and enhancing operational efficiency. With the expanding application of cleanrooms, selecting professional and reliable door and window solutions has become a consensus within the industry.
