In contemporary high-tech and precision manufacturing fields, Clean Room Solution has become an indispensable core component of industrial production. Whether in pharmaceuticals, medical devices, biotechnology, or electronics and semiconductor manufacturing, the ability to control a clean environment directly determines product quality and safety. How can high-efficiency, energy-saving, and sustainable clean spaces be realized has become a key technological focus across industries.

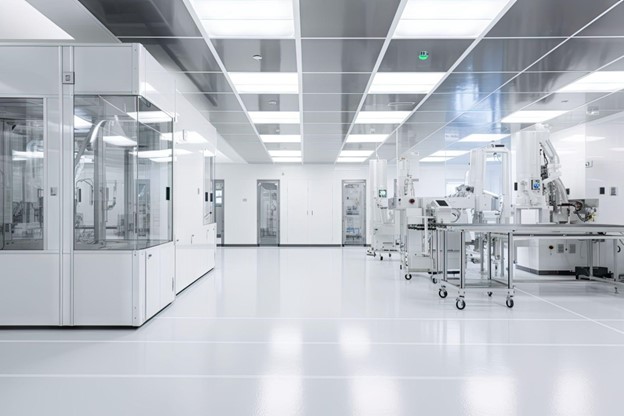

What is a Clean Room Solution?
A Clean Room Solution refers to a comprehensive system designed to create, maintain, and manage a controlled clean environment. It is not merely about "building a clean room," but provides a systematic solution spanning design, construction, equipment configuration, air purification, monitoring and management, and maintenance.
Its core objective is to maintain dust, microorganisms, temperature, humidity, and pressure within specific standard ranges in a confined space through air filtration and flow control, ensuring the safety and precision of products or experimental processes.
Components
A complete Clean Room Solution typically includes the following core systems:
| System Module | Function Description |
|---|---|
| Air Purification System | Uses primary, medium, and high-efficiency (HEPA/ULPA) filters to remove airborne particles and microorganisms. |
| Airflow and Pressure Control System | Maintains positive pressure in the clean area via supply, return, and exhaust air systems to prevent external contamination. |
| Temperature and Humidity Control System | Maintains constant temperature and humidity, ensuring conditions for equipment and products. |
| Intelligent Monitoring System | Collects parameters such as temperature, humidity, airflow, particulate concentration, and pressure difference in real-time for automated control. |
| Structural and Finishing System | Uses dustproof, antibacterial, and easy-to-clean panels, flooring, and sealed doors and windows. |
| Personnel and Logistics Management System | Includes changing rooms, air showers, and pass-through windows to control personnel and material entry and prevent contamination. |
Application Areas
Clean Room Solutions are widely applied in:
Pharmaceuticals and biotechnology (drug production, vaccine development)
Electronics and semiconductor manufacturing (chips, precision components)
Food and cosmetics production (aseptic packaging, filling lines)
Medical devices and laboratories (surgical instruments, testing equipment)
New energy and aerospace sectors (lithium batteries, optical instruments)
Why is it so important?
In these industries, even a single particle of dust or a single microorganism can cause product failure, experimental errors, or compromise safety. A Clean Room Solution ensures that air, temperature, humidity, personnel, and equipment operate under controlled conditions, achieving:
Stable product quality
Repeatable experimental results
Improved production safety and compliance
Optimized energy use and maintenance costs
Structural Differences Between Softwall and Hardwall Clean Rooms
Clean rooms are generally divided into Softwall Clean Rooms and Hardwall Clean Rooms based on structure and usage requirements. Both types have unique characteristics in terms of structure, installation, applicable scenarios, and cost. The detailed comparison is as follows:
| Comparison Item | Softwall Clean Room | Hardwall Clean Room |
|---|---|---|
| Main Structural Materials | Aluminum alloy frame + transparent PVC or anti-static curtains | Aluminum alloy frame + clean panels (color steel, honeycomb panels, glass magnesium panels, etc.) |
| Wall Form | Flexible curtain structure, movable or removable | Fixed rigid walls, stable structure |
| Ceiling Structure | Modular ceiling with built-in HEPA filters and lighting | Integrated ceiling system closely linked with air purification system |
| Installation Method | Quick assembly, suitable for temporary or partial clean areas | Fixed construction, suitable for long-term use or high-grade cleanrooms |
| Cleanliness Level | Typically ISO 7–8 | ISO 4–6 or higher |
| Flexibility & Expandability | Easily movable or reconfigurable, convenient expansion | Limited expandability, modifications require reconstruction |
| Cost & Construction Time | Lower cost, shorter installation period | Higher cost, longer construction period |
| Applicable Scenarios | Laboratories, temporary production lines, inspection areas | Pharmaceutical workshops, electronics factories, medical device production areas |
Structural Features
1.Softwall Clean Rooms: Flexibility and Cost-Effectiveness
Modular Frame: Made of lightweight aluminum alloy or stainless steel, simple structure.
Curtain Enclosure: Anti-static PVC or EVA material effectively blocks external dust.
High Mobility: Can be quickly assembled or disassembled according to process changes or production line adjustments.
Typical Applications: Short-term experiments, electronics assembly areas, clean inspection lines.
Advantages: Fast construction, low cost, flexible configuration.
Limitations: Limited cleanliness level, weaker sound insulation and air tightness.

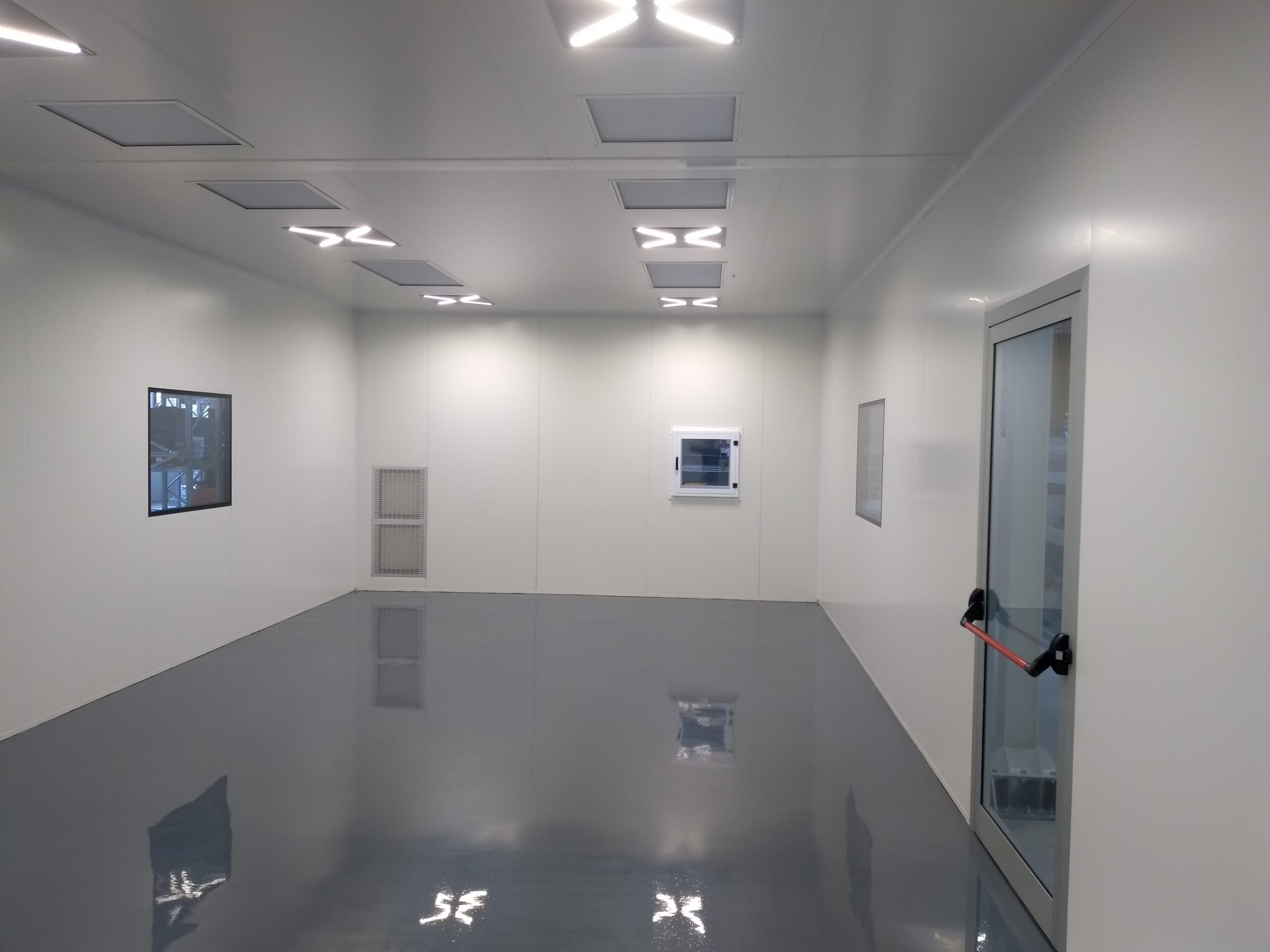

2.Hardwall Clean Rooms: Stability and High Standards
Wall Structure: Made of high-strength clean panels (color steel, honeycomb aluminum panels, etc.), smooth and dust-free surfaces inside and out.
Integrated Air System: Ceilings often equipped with FFU (Fan Filter Unit) systems for laminar airflow.
Strong Sealing Performance: Uniform airflow organization and stable positive pressure maintenance.
Typical Applications: Pharmaceutical plants, hospital operating rooms, semiconductor and optical device production.
Advantages: High cleanliness, long service life, solid structure.
Limitations: High cost, difficult to modify.
Integration of Intelligent Sensing and Cleanroom Control
With the digital upgrade of industry, intelligent sensors have become a key component of Clean Room Solutions. Real-time collection of data such as temperature, humidity, differential pressure, airflow, and particle concentration allows managers to precisely monitor the cleanroom status via a central control system. Once parameters deviate from the set range, the system can automatically adjust airflow or filtration efficiency, achieving dynamic environmental balance. This intelligent monitoring not only improves operational efficiency but also significantly reduces human error.
1. Core Role of Intelligent Sensing
The main goal of cleanroom operation is to maintain stable air cleanliness, temperature, humidity, pressure, and airflow speed, which relies on the real-time feedback from high-sensitivity sensors.
| Sensor Type | Monitored Parameter | Application Scenario |
|---|---|---|
| Particle Sensor | Airborne particle concentration (PM0.3–PM10) | Real-time monitoring of cleanroom class changes |
| Temperature & Humidity Sensor | Temperature, relative humidity | Medical, electronics, pharmaceutical clean zones |
| Differential Pressure Sensor | Zone pressure difference and airflow direction | Prevent cross-contamination, maintain positive pressure |
| Airflow Sensor | Laminar airflow speed and uniformity | Dust-free production lines and ventilation monitoring |
| VOC Gas Sensor | Organic volatile compounds | Chemical labs, pharmaceutical production |
These sensor data are aggregated and analyzed by centralized control systems (BAS/EMS) and can trigger automatic adjustments in milliseconds, such as fan speed regulation, filter unit activation, or HVAC load balancing.
2. Intelligent Control Systems: From Passive Response to Active Adjustment
Traditional cleanroom systems rely on manual monitoring and periodic calibration, whereas modern Clean Room Solutions achieve fully automatic closed-loop control:
Real-time collection and cloud analysis
Sensors upload data to a central control platform, where algorithms detect trends and deviations in cleanliness.
Automatic execution of adjustment commands
When particle concentration exceeds limits or temperature deviates from set values, the system automatically adjusts airflow or fan operation without human intervention.
Multidimensional linked management
Cleanrooms can link with lighting, access control, and energy monitoring systems to unify energy management and cleanliness control.
Intelligent alert mechanisms
Abnormal conditions (e.g., pressure imbalance or filter blockage) are instantly detected and alerted, preventing contamination risks.
3. Data-Driven Cleanroom Management
The use of intelligent sensing technology shifts cleanroom management from "experience-based control" to a data-driven approach.
Visualized data platforms
Operators can monitor temperature, humidity, and particle concentration trends remotely.
Predictive maintenance
Sensor data helps predict equipment condition and proactively alerts for filter replacement or system servicing, avoiding downtime.
Energy optimization
Algorithms dynamically adjust airflow and cooling loads, ensuring performance while reducing energy consumption.
Antimicrobial and Self-Cleaning Material Innovations
The core goal of a cleanroom is contamination prevention, and material selection directly affects hygiene control. Recently, antimicrobial coatings and self-cleaning surface materials have been widely adopted. They actively inhibit microbial growth and reduce cleaning frequency, minimizing secondary contamination. These materials also provide corrosion resistance and high reflectivity, improving lighting efficiency and environmental brightness.
Antimicrobial Materials: From Passive Protection to Active Inhibition
Traditional walls, floors, and equipment surfaces often use epoxy, stainless steel, or PVC. While easy to clean, they cannot actively suppress microbial growth. Next-generation antimicrobial materials embed metal ions or nano-oxides into the substrate, providing continuous antimicrobial action.
| Antimicrobial Type | Main Component | Mechanism | Application Area |
|---|---|---|---|
| Silver Ion (Ag⁺) | Composite resin | Disrupts cell membranes, inhibits bacteria reproduction | Panels, doors, workbenches |
| Nano Titanium Dioxide (TiO₂) | Photocatalytic oxide | Decomposes organic contaminants and bacteria under light | Ceilings, light housings |
| Copper Ion (Cu⁺/Cu²⁺) | Coating | Interferes with cellular metabolism | Floors, door handles |
| Organic Antimicrobial Coating | Quaternary ammonium polymer | Forms long-lasting antimicrobial film | Air outlets, equipment surfaces |
These materials form a microenvironment barrier on contact surfaces, maintaining antimicrobial effects for years and effectively inhibiting bacteria, fungi, and viruses.
Self-Cleaning Technology: Enhancing Maintenance Efficiency
Dust, oil, and particle accumulation on cleanroom surfaces affect cleanliness levels. The application of self-cleaning materials transforms maintenance from manual removal to surface-autonomous cleaning:
1.Nano self-cleaning coatings
Nano-scale roughness and superhydrophobic surfaces (contact angle >150°) prevent dust and water adhesion; pollutants can be easily removed by airflow or water.
2.Photocatalytic self-cleaning films
Under visible or UV light, TiO₂ decomposes organic contaminants, oxidizing them into CO₂ and H₂O for continuous purification.
3.Antistatic self-cleaning surfaces
Conductive polymers or metal oxides dissipate static charges, preventing dust adhesion, especially important in electronics cleanrooms.
Multidimensional Synergy in Cleanroom Systems
In modern Clean Room Solutions, antimicrobial and self-cleaning materials are integrated with air purification, airflow design, and humidity control:
Surface protection layer reduces contaminant adhesion
Intelligent sensor systems monitor airborne particle changes
Automated cleaning and disinfection modules improve maintenance efficiency
Modular panel design facilitates periodic replacement and upgrades
This multidimensional approach maintains long-term stable clean environments, reduces manual cleaning and chemical usage, and achieves a balance of efficiency, environmental friendliness, and durability.
Green Antimicrobial and Intelligent Maintenance
Future cleanroom material development will focus on:
Eco-friendly antimicrobial agents: Natural organic materials replace metal ions to reduce environmental impact
Durable self-healing coatings: Automatically repair scratches while maintaining antimicrobial properties
Intelligent responsive surfaces: Activate antimicrobial mechanisms when contamination is detected
Recyclable modular materials: Support reuse, reducing construction and maintenance costs
Modular Construction: The Key to Efficient Cleanroom Building
In modern cleanroom construction, speed, flexibility, and cost control have become critical factors for project success. Traditional cleanroom construction often requires long cycles and complex on-site installation processes. With the rise of modular Clean Room Solutions, the construction industry is witnessing a new era of efficiency.
1. Core Value of the Modular Concept
The basic idea of modular construction is to prefabricate cleanroom components—walls, ceilings, doors and windows, ducts, lighting systems, and other structural units—into standardized modules at the factory, where precision manufacturing and inspection are completed before being transported to the site for assembly.
This approach not only shortens construction cycles but also ensures "cleanliness upon installation" through precision control and systematic design.
| Modular Construction Advantages | Traditional Construction | Modular Cleanroom |
|---|---|---|
| Construction Cycle | On-site cutting and assembly, long duration | Factory prefabrication, on-site assembly, cycle reduced by over 50% |
| Quality Control | Highly affected by site conditions | Standardized production, high precision, strong consistency |
| Expansion & Maintenance | Difficult to modify, high cost | Modules can be replaced or upgraded easily |
| Cleanliness Control | Dust hard to control on-site | Dust-free installation, low contamination risk |
| Overall Cost | High material waste | Reusable components, high material utilization |
2. Rapid Installation and Flexible Expansion
A key advantage of modular cleanrooms is fast deployment. Standardized components use snap-fit, sealing strips, or hidden connections for "plug-and-play" assembly, greatly reducing welding, grinding, and other high-dust operations. This not only speeds up construction but also reduces contamination risks.
Moreover, cleanroom spaces often need expansion or functional adjustment as production demands change. The modular, detachable design allows users to quickly reconfigure space without large-scale demolition, significantly enhancing the cleanroom's long-term usability and sustainability.
3. Parallel Energy Efficiency and Environmental Protection
Modular construction is not only about efficiency—it also aligns with green building principles. Prefabrication in the factory improves material utilization and reduces waste. On-site, fewer wet processes are required, which minimizes dust and noise pollution.
Some modern cleanroom systems incorporate recyclable panels and energy-efficient insulation layers, maintaining airtight performance while reducing energy consumption.
4. Intelligent Construction and Digital Monitoring
With the introduction of digital construction technologies (BIM, IoT), modular cleanroom construction has evolved beyond mechanical assembly to intelligent monitoring and precise modeling:
BIM Simulation: Previsualize construction processes in 3D to avoid design conflicts
Intelligent Sensor Monitoring: Real-time detection of installation precision and air cleanliness
Remote Maintenance Systems: Post-installation monitoring of operational data to support maintenance planning
This intelligent construction model ensures traceability and data-driven management from the building stage, guaranteeing that every module meets cleanroom standards.
Design Considerations: Scientific Balance of Airflow and Temperature
In cleanroom construction, airflow and temperature control are critical factors to ensure cleanliness and process stability. Proper airflow design not only removes particles and contaminants but also ensures uniform temperature and humidity distribution, thereby enhancing overall cleanroom performance.
1. Airflow Design Principles
Cleanroom airflow is mainly divided into laminar flow (unidirectional) and turbulent flow (mixed):
Laminar Flow
Air moves in a single direction, carrying particles directly out of the space.
Commonly used in critical areas requiring extremely high cleanliness, such as pharmaceutical packaging or precision instrument manufacturing.
Turbulent Flow
Air moves in multiple directions, but high air exchange rates reduce particle concentration.
Suitable for non-critical areas or general production environments; lower cost.
| Airflow Type | Characteristics | Suitable Area |
|---|---|---|
| Laminar | Unidirectional, high cleanliness | Laboratory critical operations, sterile pharmaceutical zones |
| Turbulent | Multi-directional, high air exchange | Storage areas, general production zones |
2. Temperature and Humidity Control
Temperature and humidity not only affect product quality but also impact airflow efficiency. Proper control prevents:
Condensation or equipment corrosion in high-humidity environments
Static electricity in low-humidity environments, which can damage electronic components or precision instruments
Process instability due to temperature fluctuations, affecting production consistency
Optimization measures include:
Precision HVAC and humidification/dehumidification systems integrated with digital control modules
Zonal temperature and humidity management in critical areas to avoid energy waste from uniform control
Well-placed monitoring sensors for real-time feedback and adjustment of airflow, temperature, and humidity
3. Cleanroom Zoning and Air Balance
To ensure efficient airflow, cleanrooms often adopt zoning design:
Critical areas: e.g., sterile operation rooms, require laminar flow and strict temperature/humidity control
Non-critical areas: e.g., storage rooms or changing areas, may use turbulent flow to reduce energy consumption
Pressure gradients: Positive or negative pressure differences between zones prevent contaminants from entering critical areas
Modular Clean Room Solutions allow pre-designed airflow channels in each module, ensuring airflow and temperature distribution during assembly and avoiding complex adjustments post-construction.
4. Intelligent Monitoring for Scientific Balance
Modern cleanrooms increasingly incorporate intelligent sensor systems:
Real-time monitoring of particle counts, temperature, humidity, and pressure differentials
Automatic adjustment of fan speeds, exhaust volume, and air conditioning to achieve dynamic balance
Data can be remotely managed, providing a basis for maintenance and optimization
Intelligent control not only enhances air and temperature stability but also reduces manual monitoring costs, ensuring sustained high-performance operation.
Collaboration Between Zoning and Flexible Wall Systems
In modern cleanroom design, the combination of spatial zoning and flexible wall systems is crucial for efficient and precise production management. Different functional areas have varying requirements for cleanliness, temperature, humidity, and pressure, and flexible wall systems can quickly adapt to these changes, enabling modular and adjustable layouts.
Importance of Zoning Design
Critical zones: e.g., sterile operation areas, precision instrument areas; require extremely low particle counts, stable airflow, and strict temperature/humidity control
Non-critical zones: e.g., changing rooms, material storage; tolerable particle concentration, moderate climate control
Pressure management: Maintain positive pressure in critical areas to prevent contamination backflow; non-critical zones maintain negative or neutral pressure for controlled airflow
Zoning ensures high cleanliness in critical areas while reducing energy use in non-critical areas, improving overall operational efficiency.
Advantages of Flexible Wall Systems
Rapid layout adjustment: Reconfigure zones according to production needs without large-scale construction
Airflow and temperature compatibility: Well-sealed interfaces ensure laminar or turbulent airflow remains effective
Easy maintenance: Panels can be removed for cleaning or replaced with antibacterial/antistatic materials
Cost and time savings: Reduces labor and material consumption compared to traditional hard walls, shortens construction cycle
| Flexible Wall Feature | Practical Value | Application Example |
|---|---|---|
| Modular design | Quickly add or remove zones | Temporary labs, expandable production lines |
| Adjustable interfaces | Maintain airflow and pressure balance | Separation of critical and non-critical zones |
| Replaceable panels | Improve hygiene levels | Antibacterial, self-cleaning material application |
| Removable for maintenance | Reduce maintenance costs | Regular cleaning and inspection |
Synergy Between Zoning and Wall Systems
Independent protection of high-cleanliness zones: Modular walls precisely enclose critical areas, stabilizing particle levels, temperature, and pressure
Adaptability to production needs: Wall layout can be adjusted to accommodate new products or processes
Optimized airflow: Wall sealing and zoning guide air from clean zones to less critical zones, reducing cross-contamination
Energy efficiency and sustainability: Proper zoning reduces unnecessary HVAC loads; wall materials can be recyclable or low-energy, supporting sustainable development principles
Common Hazards in Construction and Management
During the construction and operation of cleanrooms, even with modular construction, flexible wall systems, and intelligent sensors, various potential hazards may arise. If these hazards are not identified and addressed promptly, they can affect cleanroom performance and pose risks to production safety and product quality.
Major Hazards During Construction
1.Poor wall and interface sealing
If modular walls are not installed level or interfaces are inadequately sealed, airflow leakage and pressure instability may occur, impacting the cleanliness of critical areas.
2.Floor and ceiling construction deviations
Uneven surfaces or large gaps between panels can disrupt laminar flow or cause particle deposition.
3.Improper material selection
Choosing unsuitable antibacterial or self-cleaning materials, or incomplete coatings, can
4.Non-standard construction sequence and operations
Deviating from standard procedures for electrical, ventilation, or panel installation can affect subsequent setup and calibration, increasing rework risk.
Hazards During Operation and Management
1.Improper personnel behavior
Failing to comply with entry protocols, such as not changing protective clothing or skipping hand sanitation, can introduce particulate contamination.
2.Delayed equipment maintenance
HVAC systems, filters, and sensors not regularly serviced or calibrated may cause abnormal airflow or uncontrolled temperature and humidity.
3.Loose zoning management
Poor separation of critical and non-critical areas increases the risk of cross-contamination.
4.Inadequate cleaning and disinfection
Even with antibacterial materials, regular cleaning and disinfection are necessary to maintain high cleanliness standards.
Preventive Measures and Best Practices
Hazard TypeCountermeasure & RecommendationExpected Effect
1.Improper personnel behavior
Failing to comply with entry protocols, such as not changing protective clothing or skipping hand sanitation, can introduce particulate contamination.
2.Delayed equipment maintenance
HVAC systems, filters, and sensors not regularly serviced or calibrated may cause abnormal airflow or uncontrolled temperature and humidity.
3.Loose zoning management
Poor separation of critical and non-critical areas increases the risk of cross-contamination.
4.Inadequate cleaning and disinfection
Even with antibacterial materials, regular cleaning and disinfection are necessary to maintain high cleanliness standards.
Preventive Measures and Best Practices
| Hazard Type | Countermeasure & Recommendation | Expected Effect |
|---|---|---|
| Wall/interface leakage | Regularly inspect seals, use high-quality modular panels | Stable airflow, controlled particle levels |
| Improper personnel management | Enforce entry protocols, train staff on proper operation | Reduced cross-contamination, improved cleanliness |
| Delayed equipment maintenance | Implement scheduled maintenance and calibration | Stable temperature and humidity, extended equipment life |
| Insufficient cleaning & disinfection | Establish cleaning schedules and use appropriate disinfectants | Hygienic surfaces, inhibited microbial growth |
Strict Standards and Human Factor Management
Even with modular construction, antibacterial materials, and intelligent sensors, standard compliance and personnel management remain core elements for ensuring long-term stable cleanroom operation. Strict protocols and scientific human-factor management can effectively reduce contamination risk, enhance production efficiency, and extend the lifespan of equipment and facilities.
Importance of Standardized Operations
1.Construction Standards
All walls, ceilings, floors, and interfaces must meet cleanroom class requirements to ensure stable airflow, pressure, and temperature/humidity.
Installation precision for modular panels, interface sealing, and piping must follow unified standards to prevent performance deviations.
2.Operational and Maintenance Standards
HVAC systems, filters, and sensors should be regularly serviced and calibrated.
Cleaning and disinfection procedures must be strictly executed to maintain cleanliness in critical and non-critical zones.
Key Aspects of Human Factor Management
1.Personnel Training and Behavioral Standards
All staff entering the cleanroom must receive professional training on protective clothing, hand hygiene, and operating procedures.
Regular evaluation of personnel behavior helps prevent particle or microbial cross-contamination.
2.Access Control and Zoning
Strictly enforce zoning of critical and non-critical areas to ensure personnel and material flows comply with cleanroom class requirements.
Use intelligent sensor systems to monitor personnel movement and record environmental parameters and operations in real time.
3.Safety Measures
Wear protective goggles, masks, and gloves in high-risk areas to reduce injury and contamination risks.
Provide quick training for new employees and temporary construction staff to ensure consistent operations.
Integration of Management and Standards
| Management Aspect | Key Measures | Expected Outcome |
|---|---|---|
| Construction Standards | Modular installation precision, interface sealing, standardized piping | Stable airflow, balanced pressure, precise temperature/humidity control |
| Personnel Training | Protective clothing, hand hygiene, operating procedures | Reduced particulate and microbial contamination, improved cleanliness |
| Access Control | Zoning, intelligent sensor monitoring | Real-time monitoring, reduced cross-contamination |
| Operation & Maintenance | Scheduled calibration of HVAC and sensors, cleaning & disinfection | Extended equipment life, stable environment, safe and reliable operations |
With the global upgrade of manufacturing and the rise of smart technologies, Clean Room Solutions have evolved from single air-purification projects into integrated systems combining intelligent monitoring, energy efficiency, and modular construction.
They represent advanced development in cleanroom technology and provide reliable assurance for high-standard production. In the future, efficient, intelligent, and sustainable Clean Room Solutions will continue to innovations in industrial clean spaces, helping industries achieve both high-quality production and environmental safety.
